Removing the ODD dummy cover

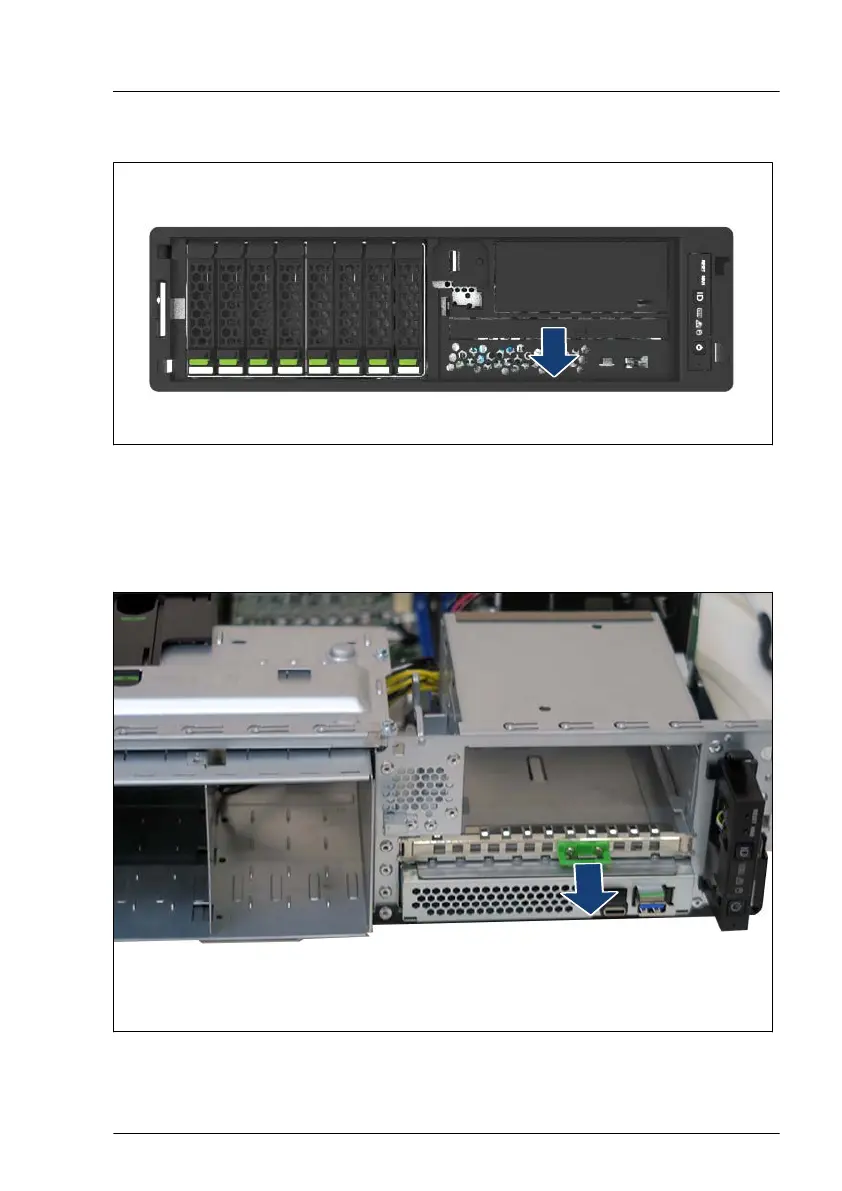

Figure 150: Removing the ODD dummy cover
▶
If applicable, remove the ODD dummy cover
.
Removing the ODD filler cover
Figure 151: Removing the ODD filler cover
Accessible drives
TX1320 M5
Upgrade and Maintenance Manual
247
246
248
