Pull the ODD out of the bay
.

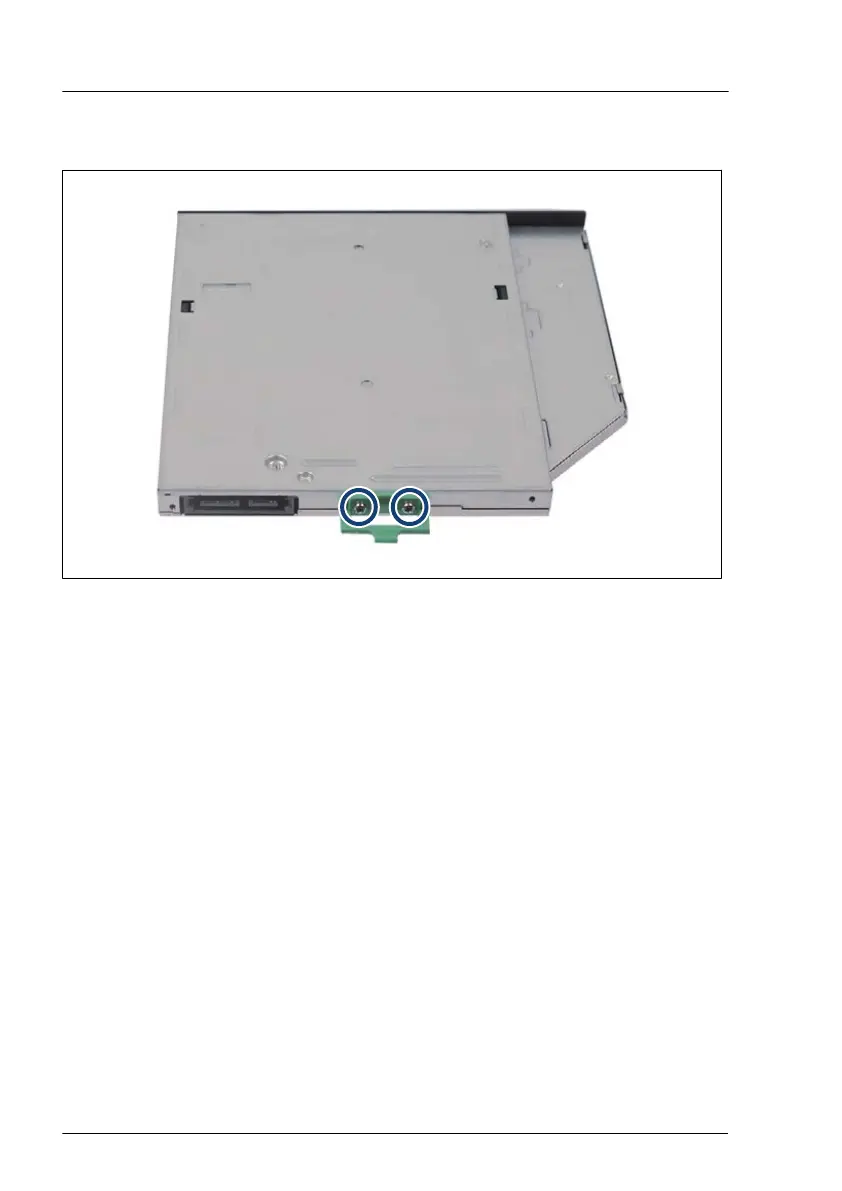

Figure 159: Removing the ODD latch
â–¶
Remove the two screws (see circles).
â–¶
Remove the ODD latch.
â–¶
If no new ODD will be installed:
â–¶
Fasten the ODD latch with two screws to the ODD filler cover
, see
Figure 152
.
Accessible drives
254
Upgrade and Maintenance Manual
TX1320 M5
253
255
