Press the release latch to remove the front panel module.
â–¶
Pull out the front panel module.
Figure 170: Removing the front panel module (B)
â–¶

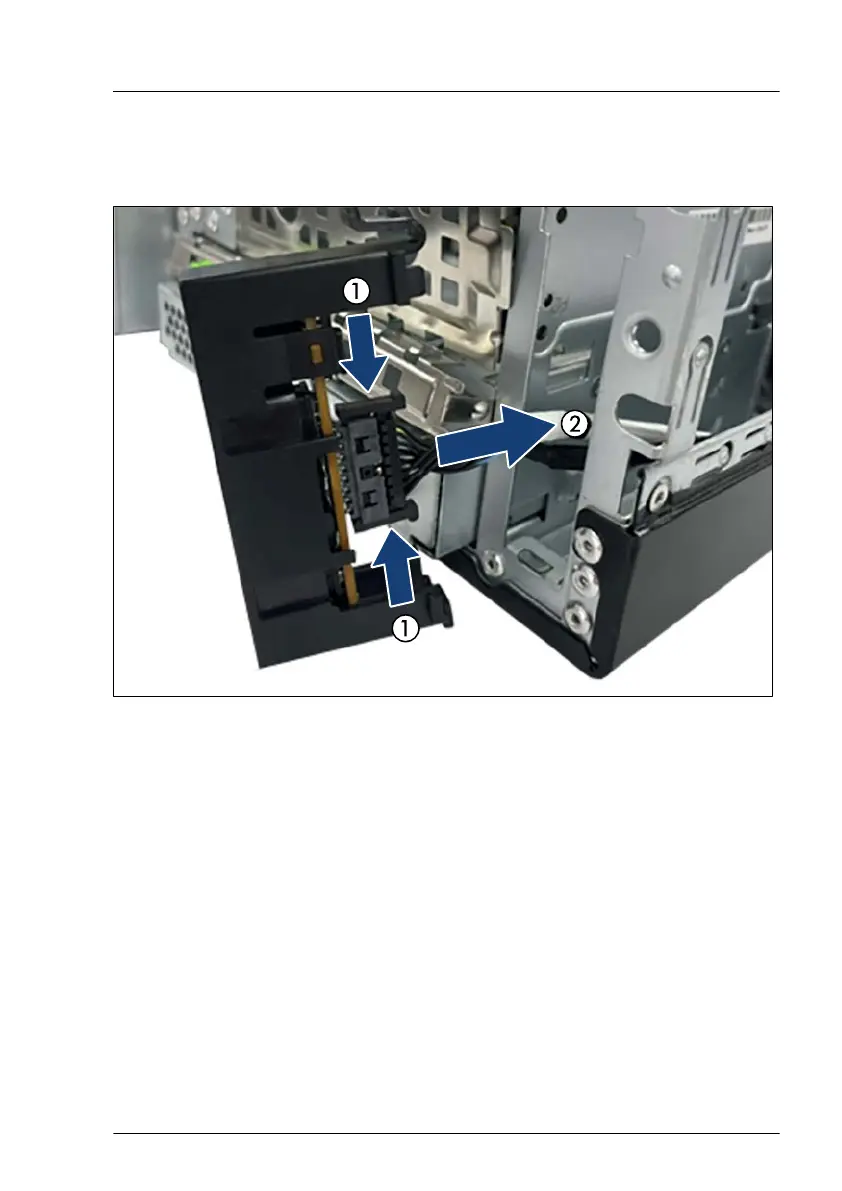

Press the release latches (1).
â–¶
Disconnect the front panel cable (2).
â–¶
Remove the front panel module.
Front panel
TX1320 M5
Upgrade and Maintenance Manual
269
268
270
