Installing the new front panel module

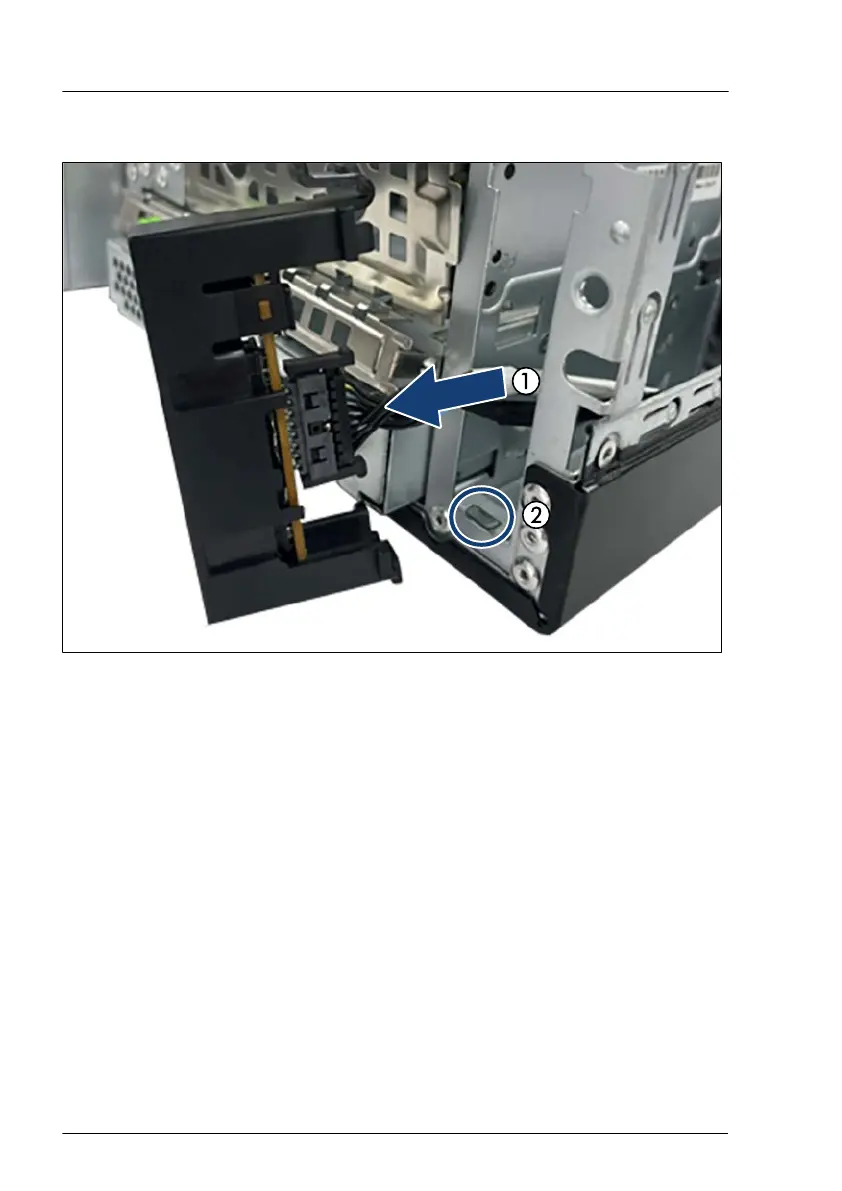

Figure 171: Installing the front panel module (A)
▶
Connect the front panel cable (1).
▶
Align the notch on the bottom of the chassis with the front panel module (2).
Front panel
270 Upgrade and Maintenance Manual TX1320 M5
