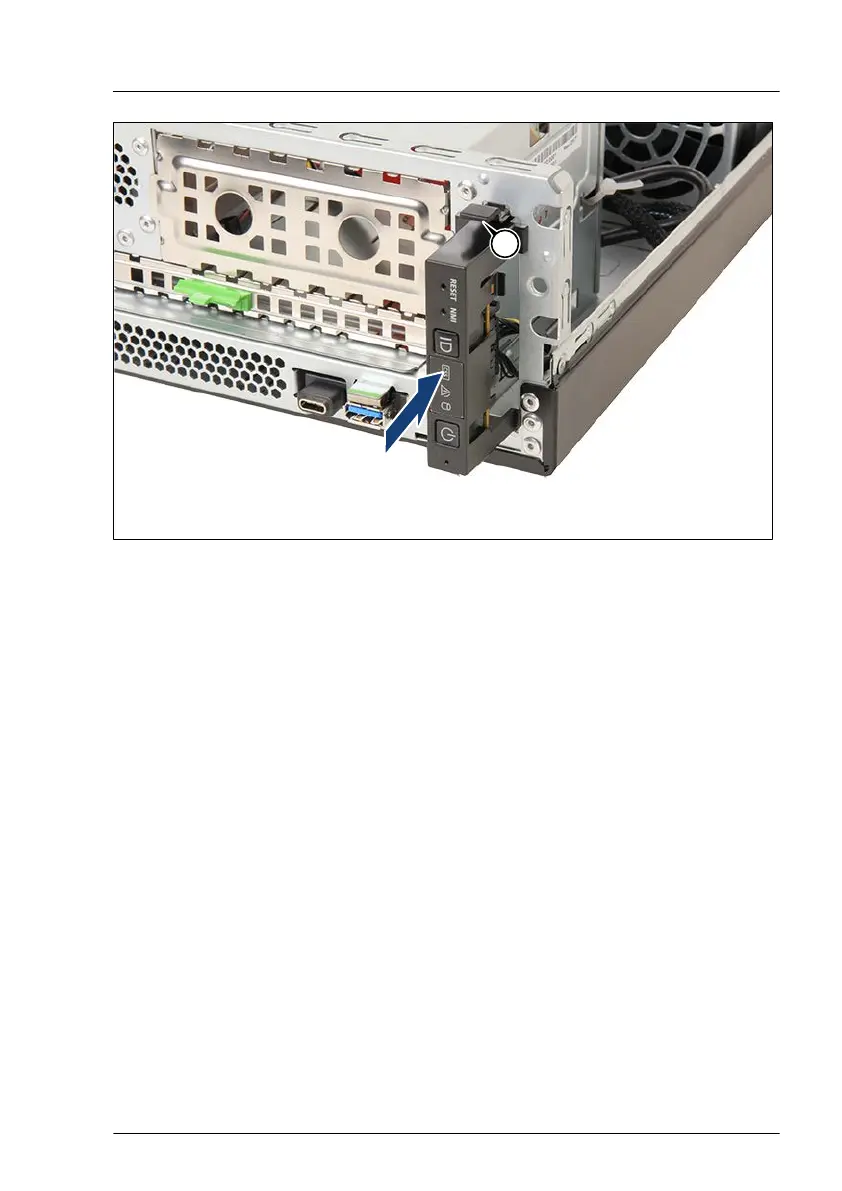

Figure 172: Installing the front panel module (B)
▶
Install the front panel module until the release latch (A) snaps in place.
Concluding steps
▶
"Reassembling" on page
54.
▶
"Connecting the power cord" on page
57.
▶
"Switching on the server" on page 60.
▶
"Verifying system information backup or restore" on page 78.
▶
"Using the Chassis ID Prom Tool" on page 96.
▶
"Resuming BitLocker functionality" on page 91.
Front panel
TX1320 M5 Upgrade and Maintenance Manual 271
