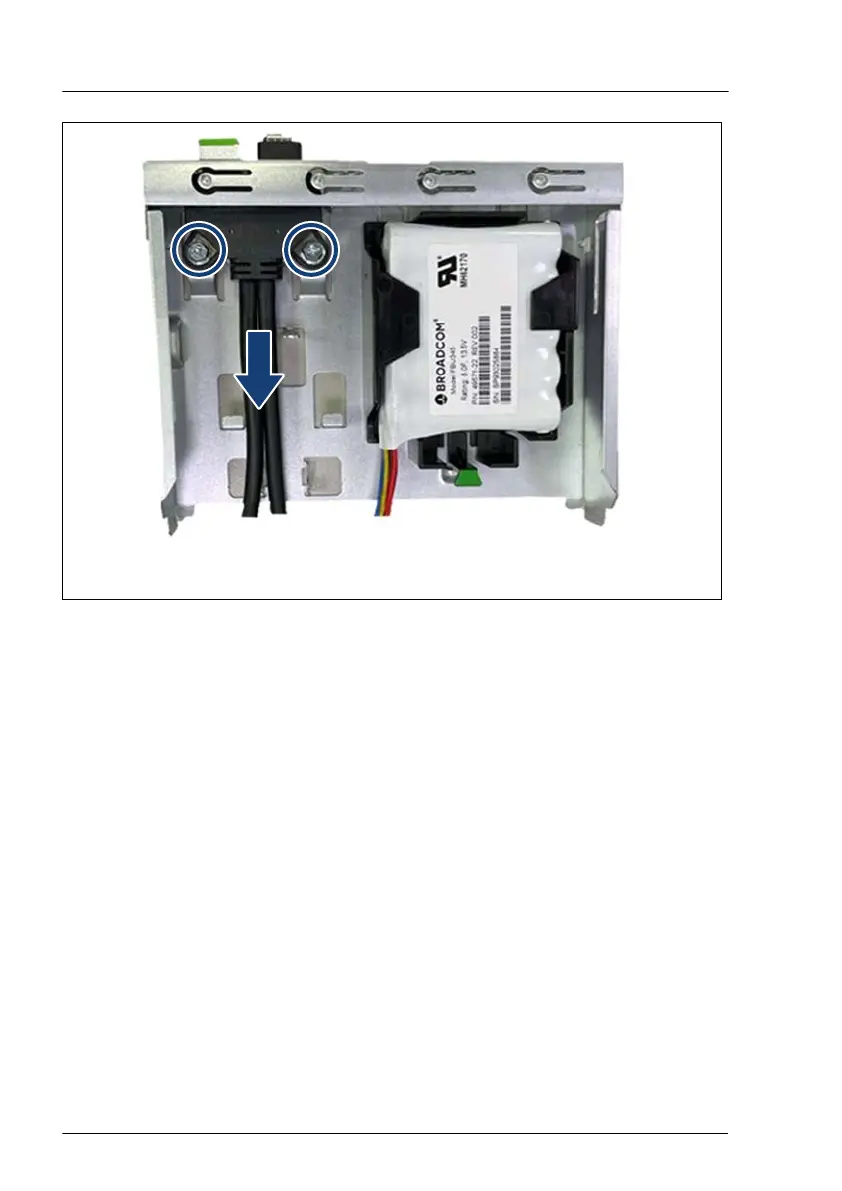

Figure 177: Removing the front USB connector
▶
Remove the two screws (see circles).
▶
Remove the front USB connector from the FBU tray
.
Installing the FBU tray
▶
Install the FBU tray
, see Figure 128.
Concluding steps
▶
"Reassembling" on page 54.
▶
"Connecting the power cord" on page 57.
▶
"Switching on the server" on page 60.
Front USB connector
