Removing the dust cover 4

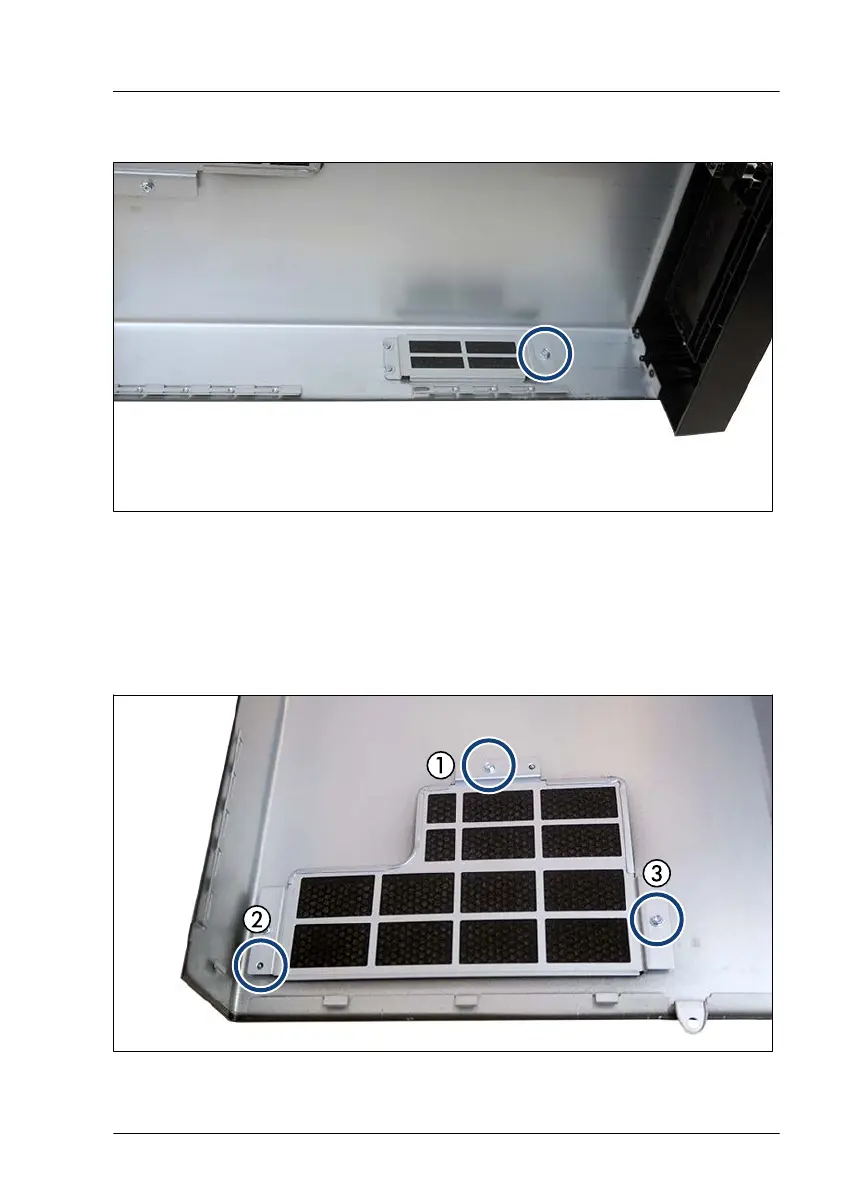

Figure 194: Removing the dust cover 4
â–¶
Remove the screw (see circle).
â–¶
Remove the dust cover 4 from the top cover
.
Removing the dust cover 3
Figure 195: Removing the dust cover 3
Dust cover
TX1320 M5
Upgrade and Maintenance Manual
295
294
296
