Remove the three screws (see circles) in the specified order (1-3).
▶
Remove the dust cover 3 from the top cover
.

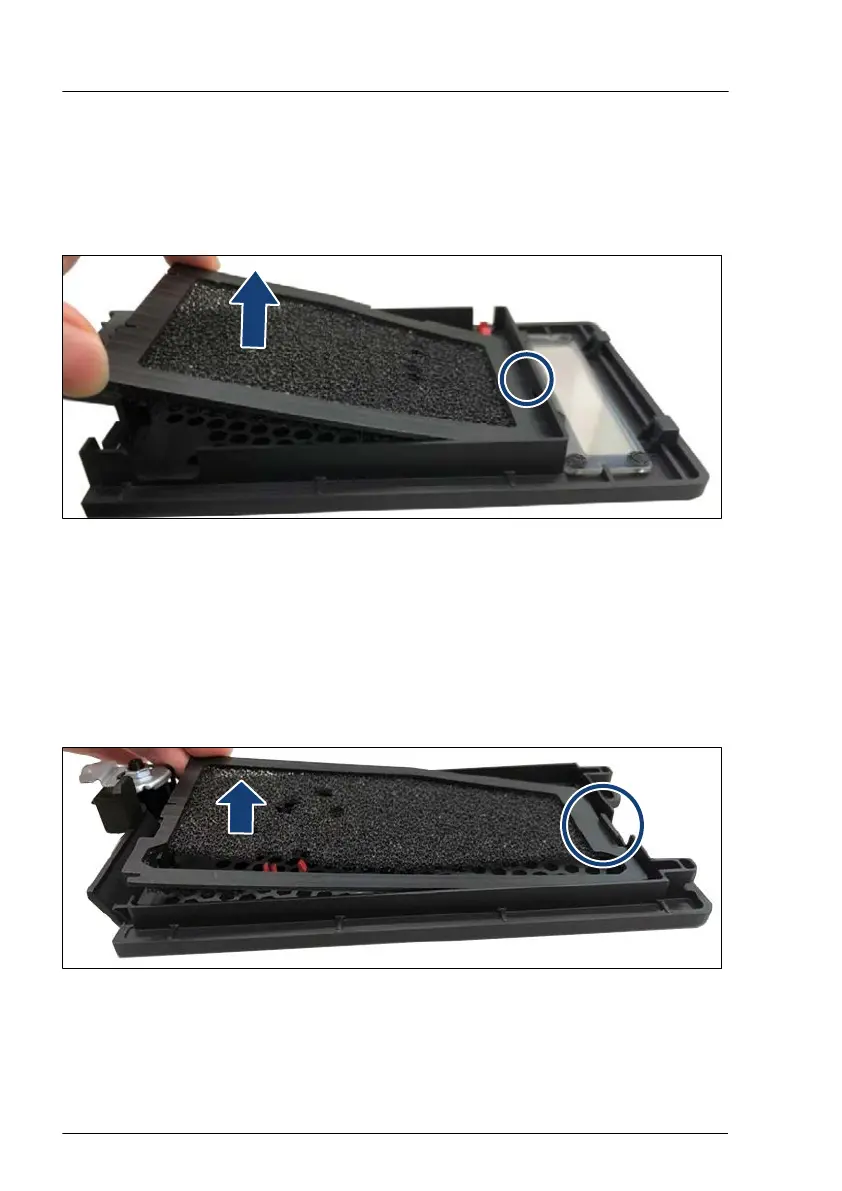

Removing the dust cover 2
Figure 196: Removing the dust cover 2
▶
Remove dust cover 2 from the hook of the accessible drive bay cover (see
circle).
▶
Remove the dust cover 2 in a slight angle from the accessible drive bay
cover.
Removing the dust cover 1
Figure 197: Removing the dust cover 1
▶
Remove dust cover 1 from the hook of the HDD bay cover (see circle).
▶
Remove the dust cover 1 in a slight angle from the HDD bay cover
.
Dust cover
296 Upgrade and Maintenance Manual TX1320 M5
