Fujitsu PRIMERGY TX1320 M5

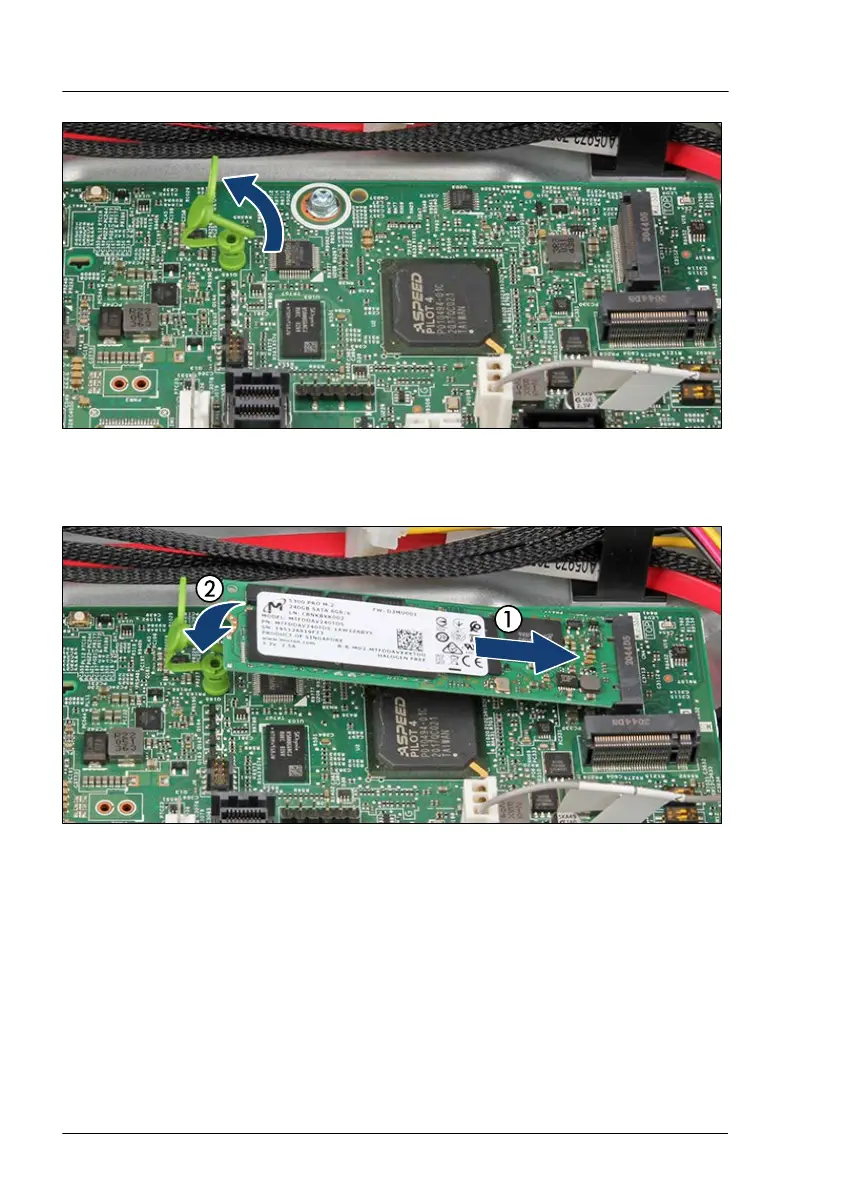

Figure 215: Opening the M.2 lock
▶
Open the M.2 lock.
Figure 216: Installing the M.2 SSD (A)
▶
With the label facing up, insert the M.2 SSD into the M.2 slot at a slight
angle (1).
▶
Place the M.2 SSD on the M.2 lock (2).
System board and components
322 Upgrade and Maintenance Manual TX1320 M5
