Preliminary steps
▶
"Shutting down the server" on page 45
.
▶
"Disconnecting the power cord" on page 46.
▶
"Getting access to the component" on page 48.
▶
If applicable, remove an expansion card, see "Removing expansion cards"
on page 203.
▶
If applicable, remove the HDD fan module (2.5-inch HDD variant), see
"Removing the HDD fan module (2.5-inch HDD variant)" on page 67.
▶
If applicable, remove the NVMe cables from the PCIe backplane, see
Figure 84.
Removing the M.2 SSD

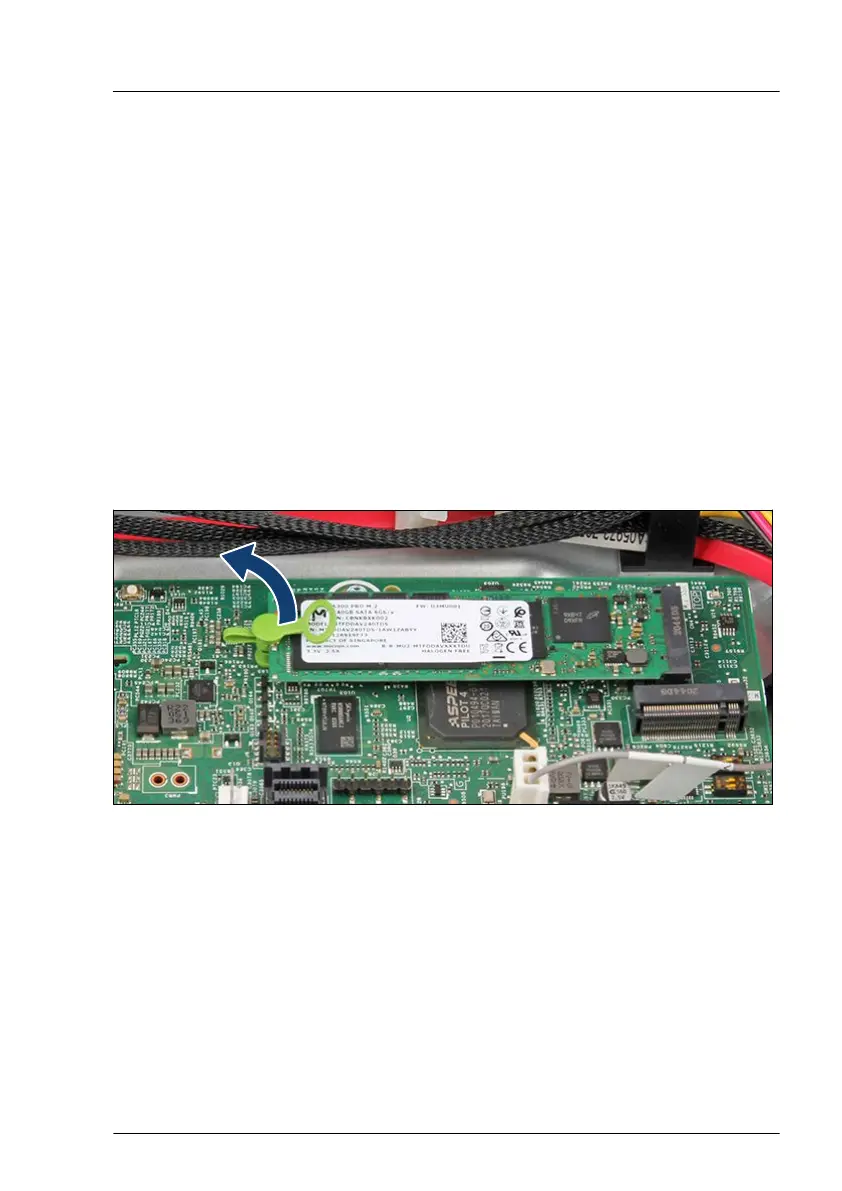

Figure 218: Removing the M.2 SSD (A)
▶
Open the M.2 lock.
