Connecting cables

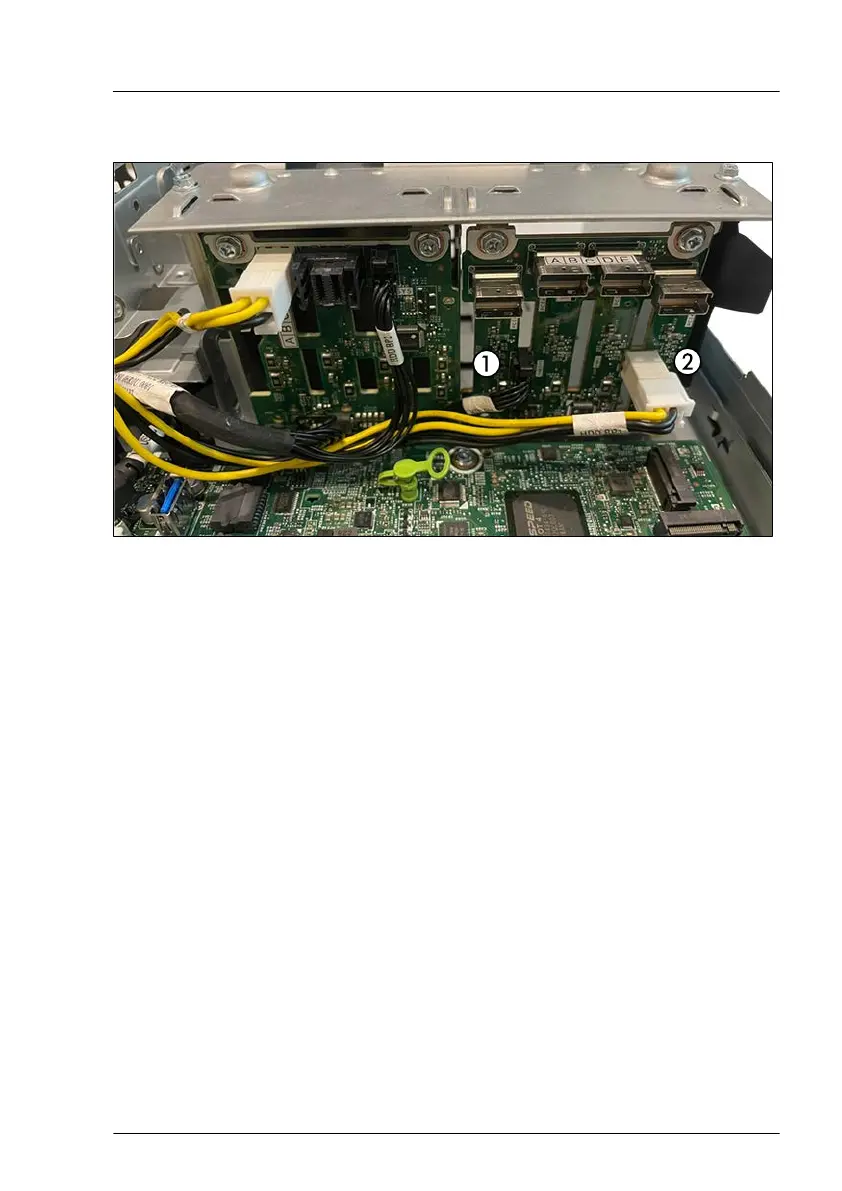

Figure 84: Example: Connecting cables to a PCIe backplane (A)
▶
Connect the cables to the PCIe backplane:
1
Power cable to the connector “PWR1”
2
OOB cable to the connector “SMBSYS”
Hard disk drive (HDD) / solid state drive (SSD)
TX1320 M5
Upgrade and Maintenance Manual
163
162
164
