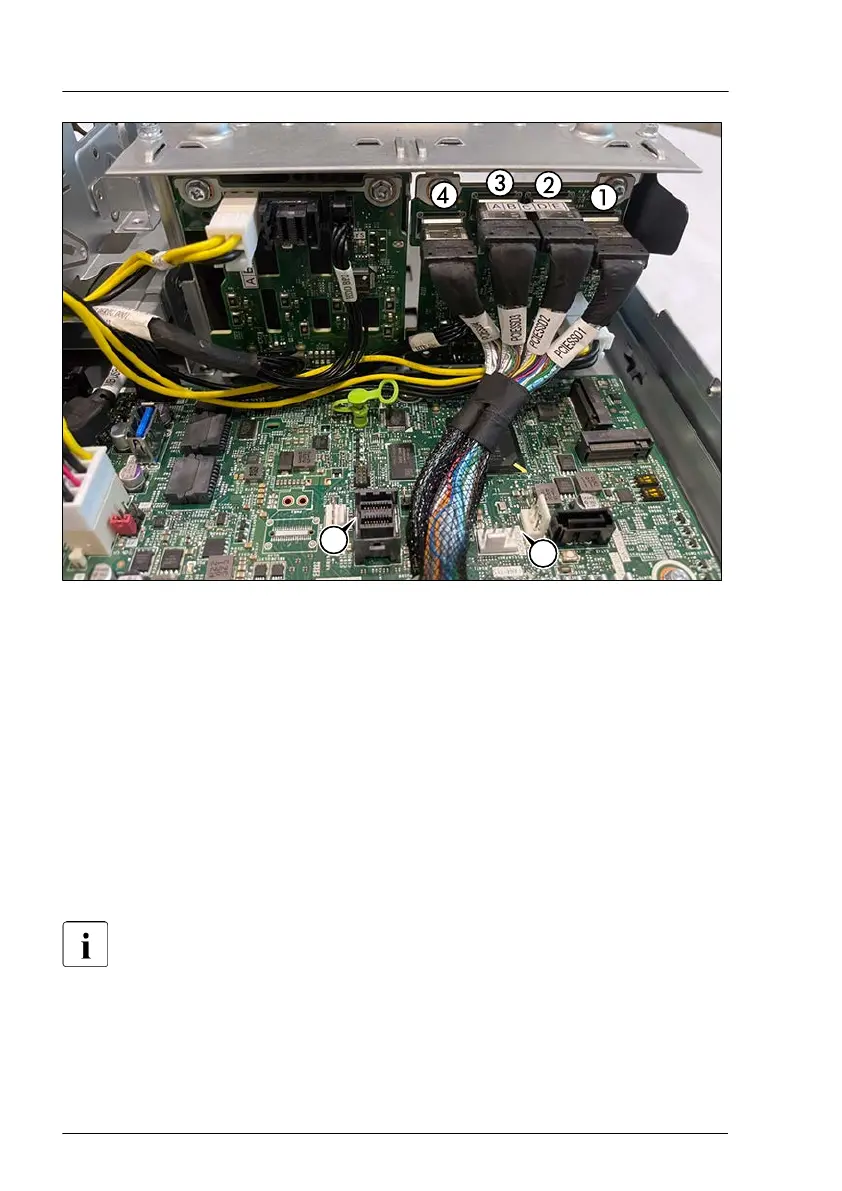

Figure 85: Example: Connecting cables to a PCIe backplane (B)
▶
Connect the NVMe cables to the PCIe backplane:
1 Connector "PCIe SSD1"
2 Connector "PCIe SSD2"
3 Connector "PCIe SSD3"
4 Connector "PCIe SSD4"
▶
If applicable, place the free connectors in an empty bay
.
▶
Route the NVMe cables between the SA
TA connector (A) and the fan
connector (B).
For the cable plan, see "Appendix B" on page 375
.
Hard disk drive (HDD) / solid state drive (SSD)
164 Upgrade and Maintenance Manual TX1320 M5
