Place the HDD backplane in the three hooks on the bottom of the HDD cage
(see circles).

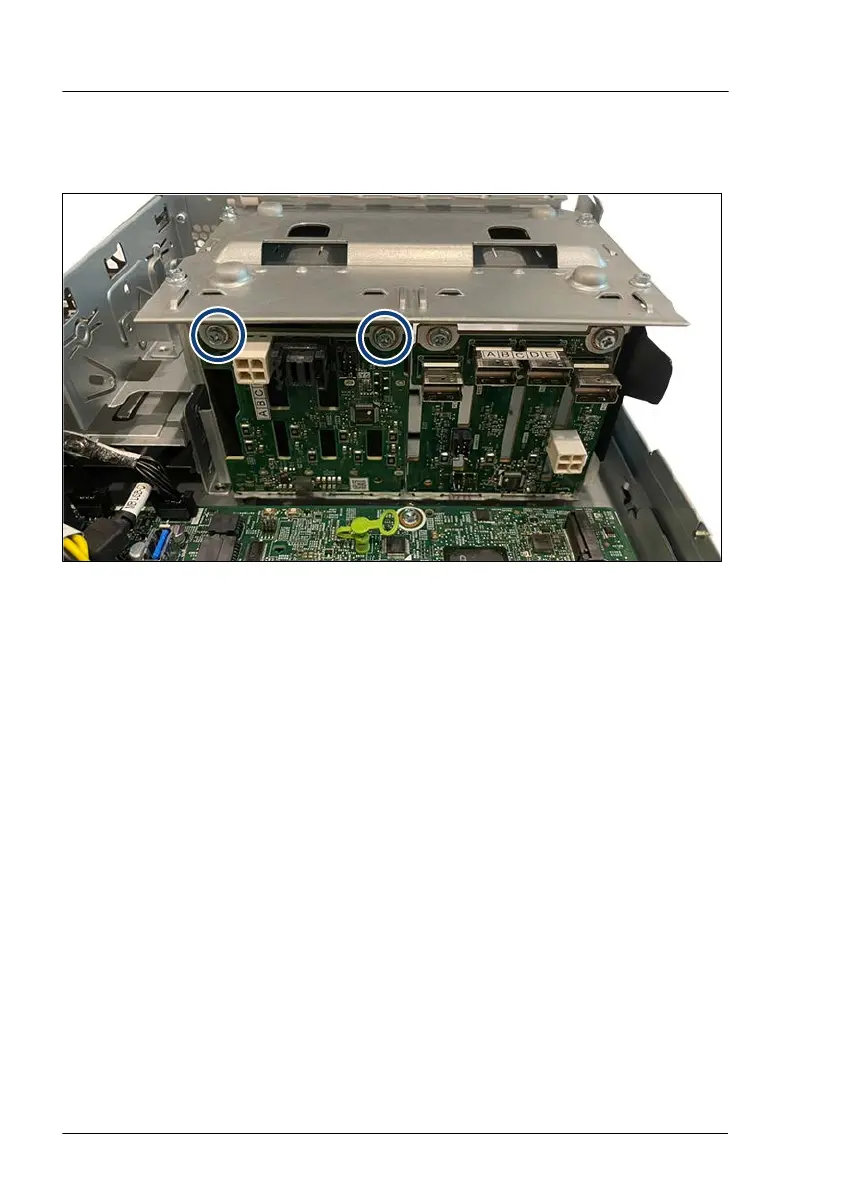

Figure 83: Fastening the screws
Fasten the two screws (see circles).
Hard disk drive (HDD) / solid state drive (SSD)
162 Upgrade and Maintenance Manual TX1320 M5
