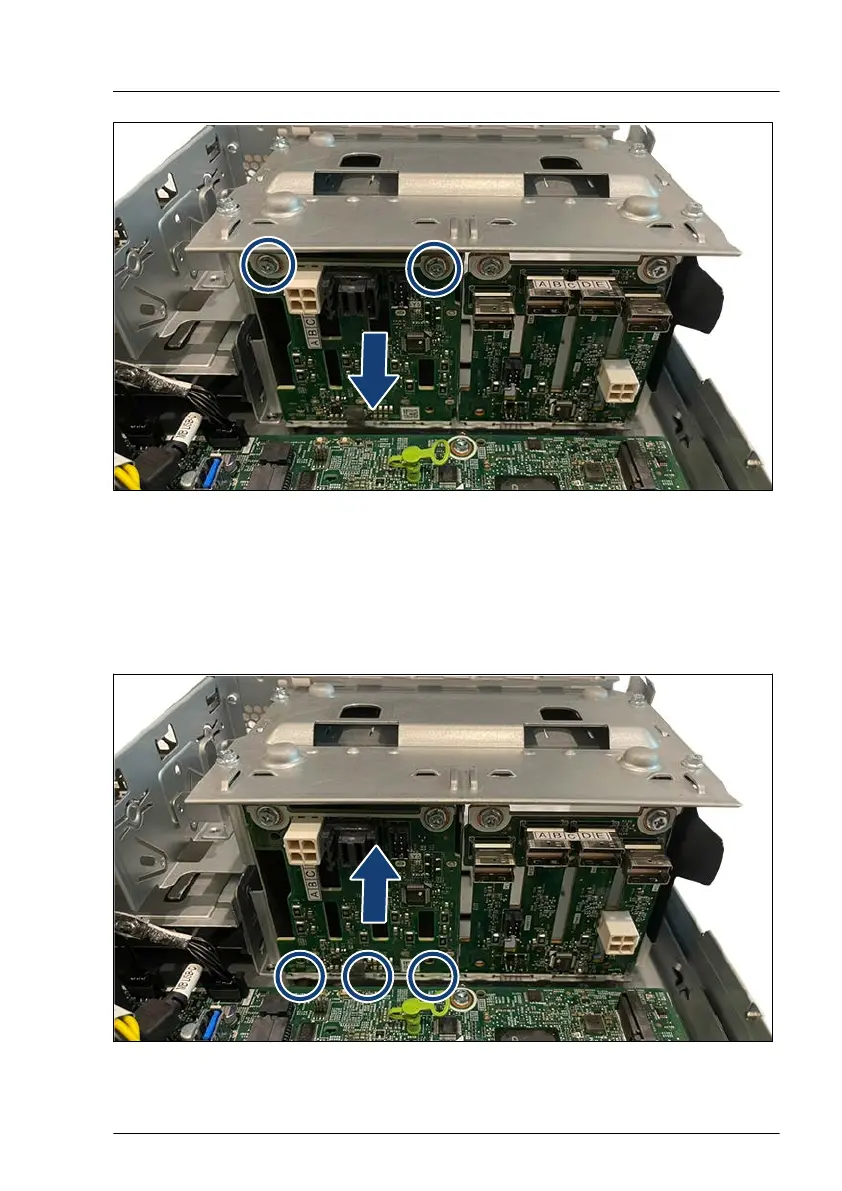

Figure 81: Removing a backplane - example HDD backplane (backplane 2)
â–¶
Remove the two screws (see circles).
â–¶
Remove the selected backplane from the HDD cage.
Installing a 2.5-inch HDD/PCIe backplane
Figure 82: Installing a backplane - example HDD backplane (backplane 2)
Hard disk drive (HDD) / solid state drive (SSD)
TX1320 M5
Upgrade and Maintenance Manual
161
160
162
