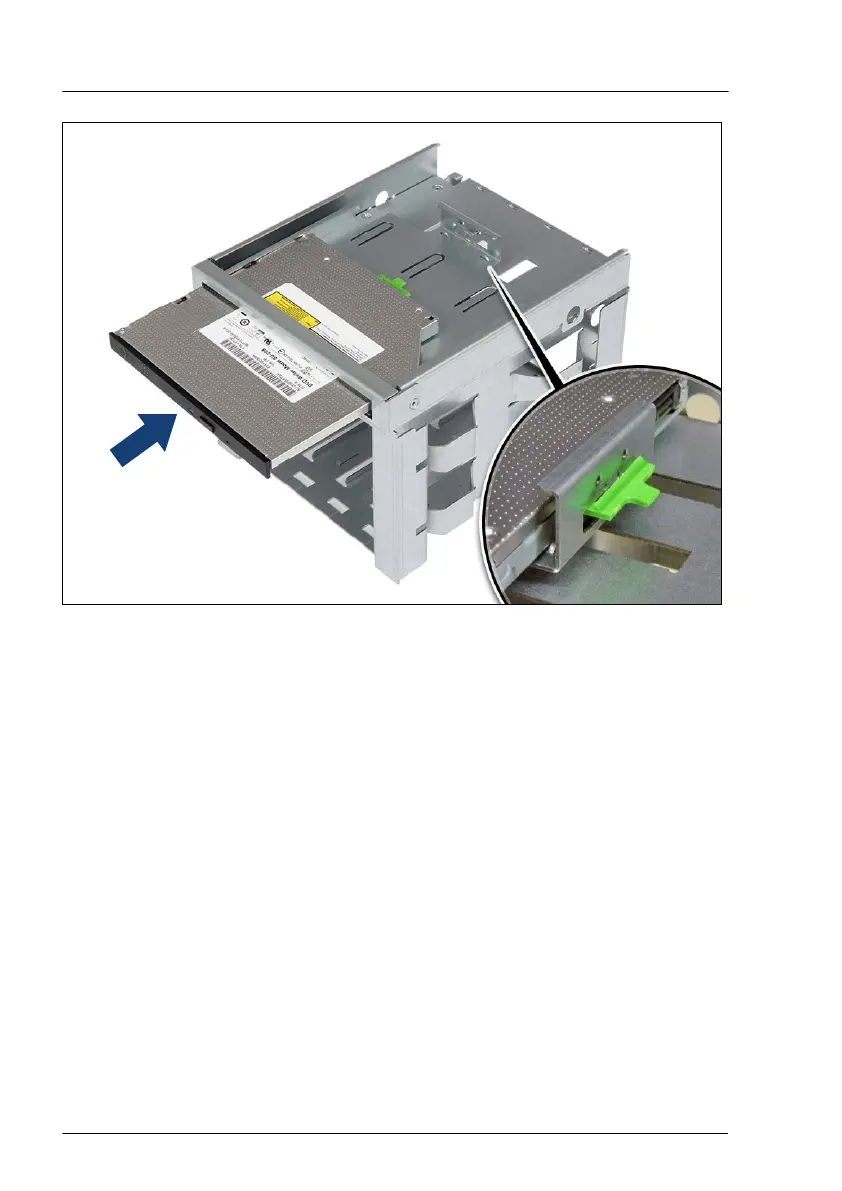

Figure 258: Installing the ultraslim ODD on the 3.5-inch HDD extension box
▶
Slide the ultraslim ODD into its bay until it locks into place (see close-up).
Installing the 4x 3.5-inch HDD extension box
▶
Install the 4x 3.5-inch HDD extension box, see "Installing the 4x 3.5-inch
HDD extension box" on page
257
.
Accessible drives
388 Upgrade and Maintenance Manual TX1330 M4
