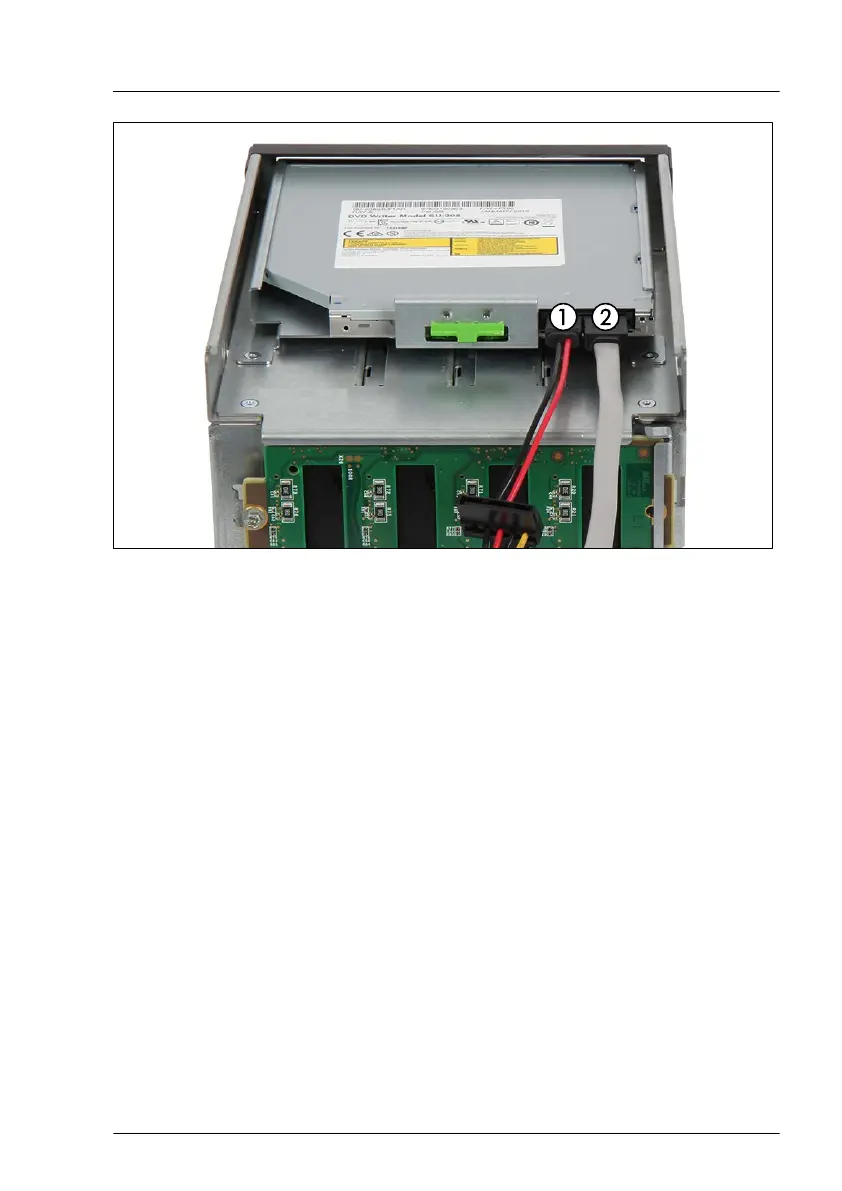

Figure 259: Connecting cables to the ultraslim ODD
▶
Connect the cables to the ultraslim ODD:
1 SATA power cable
2 SATA cable
▶
Connect the SA
TA cable from the ultraslim ODD to the system board, see
Figure 244.
Concluding steps
▶
"Reassembling" on page
66.
▶
"Connecting the power cord" on page 79.
▶
"Switching on the server" on page 81.
