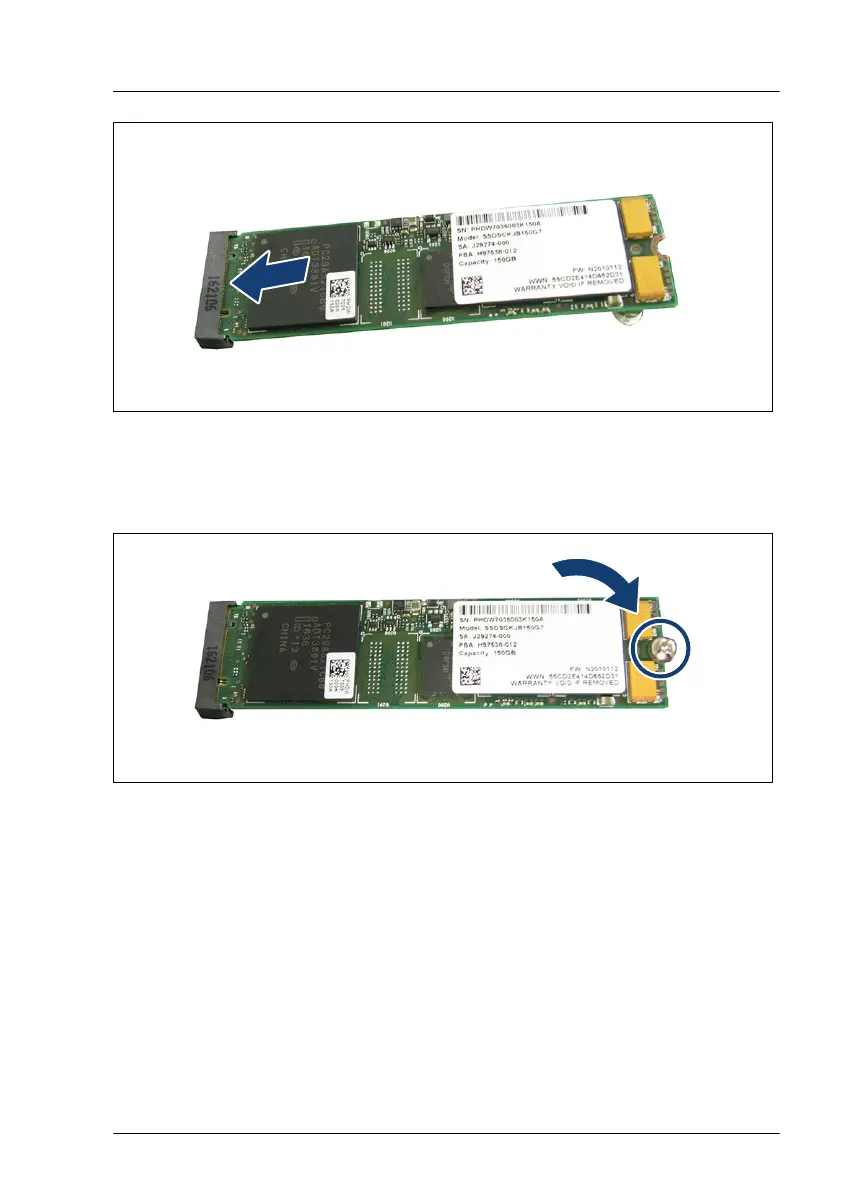

Figure 286: Installing the M.2 SSD
▶
With the label facing up, insert the M.2 SSD into the M.2 slot at a slight
angle.
Figure 287: Fastening the M.2 SSD
▶
Fasten the M.2 SSD with the screw (see circle).
Concluding steps
▶
If applicable, "Installing an expansion card" on page
299.
▶
If applicable, install the SAS expander board holder
, see "Installing the SAS
expander board holder " on page 271.
▶
Install the system fan module, see "Installing the system fan module" on
page 85.
System board and components
TX1330 M4 Upgrade and Maintenance Manual 435
