<Model Menu (Airplane/Glider/Multirotor Functions)>
[ Fine tuning VR operation mode ]
[LIN.]
：
Mixingrate0%atcenterofVR.Whenthe
VRisturnedclockwiseandcounterclockwise,
the mixing rate increases and decreases,
respectively.
[ATL+]
：
Mixingrate0%atleftendofVR.When
theVRisturned,themixingrateincreases.
[ATL-]
：
Mixingrate0%atrightendofVR.When
theVRisturned,themixingrateincreases.
[SYM.]
：
WhentheVRisturnedtotheleftorrightof
the neutral position, the mixing rate increases.

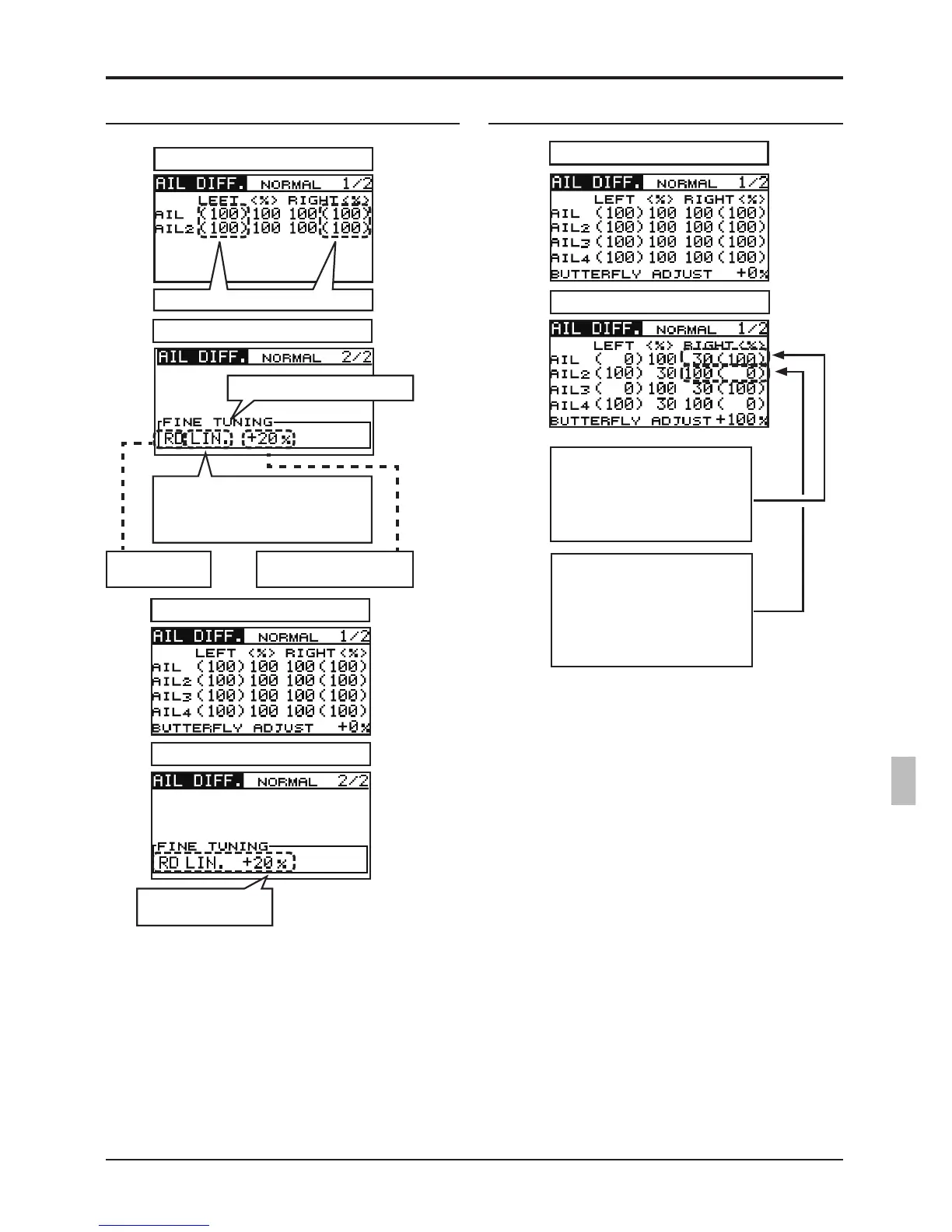

Aileron Differential Fine Tune Buttery Adjust
Example of Airplane (2AIL) P.1/2
Example of Airplane (2AIL) P.2/2
Example of Glider (4AIL) P.1/2
Example of Glider (4AIL) P.2/2
Actual rate
Operation Mode
When the ne tune control is set, it is
displayed.
Mode : LIN. / ATL+ / ATL- / SYM.
Fine tune control
hardware
The ne tune rate range:
-100 ～ +100%
It can be set by each condition.
*The start point of BUTTERFLY ADJUSTMENT shifted
from the start point of BUTTERFLY MIXING. Then, it was
corrected.
*When BUTTERFLY ADJUSTMENT RATE is "-", the
calculation method of UP/DOWN and a direction become
reversed.
*When BUTTERFLY ADJUSTMENT RATE is "+", Up rate
is decreased and DOWN rate is increased.
*When Flying wing 2AIL type, no BUTTERFLY
ADJUSTMENT will be displayed. (There is no butterfly
mixing.)
BUTTERFLY stick operation is 0.
BUTTERFLY stick operation is 100%.
The actual up rate = (Aileron
Differential rate) - (Aileron
Differential Butterfly Adjust
rate) x (Aileron Differential
rate)
The actual down rate =
(Aileron Differential rate) +
｛(100-Aileron Differential
rate) x (Buttery Adjust rate)}
It can be set by each
ight condition.
