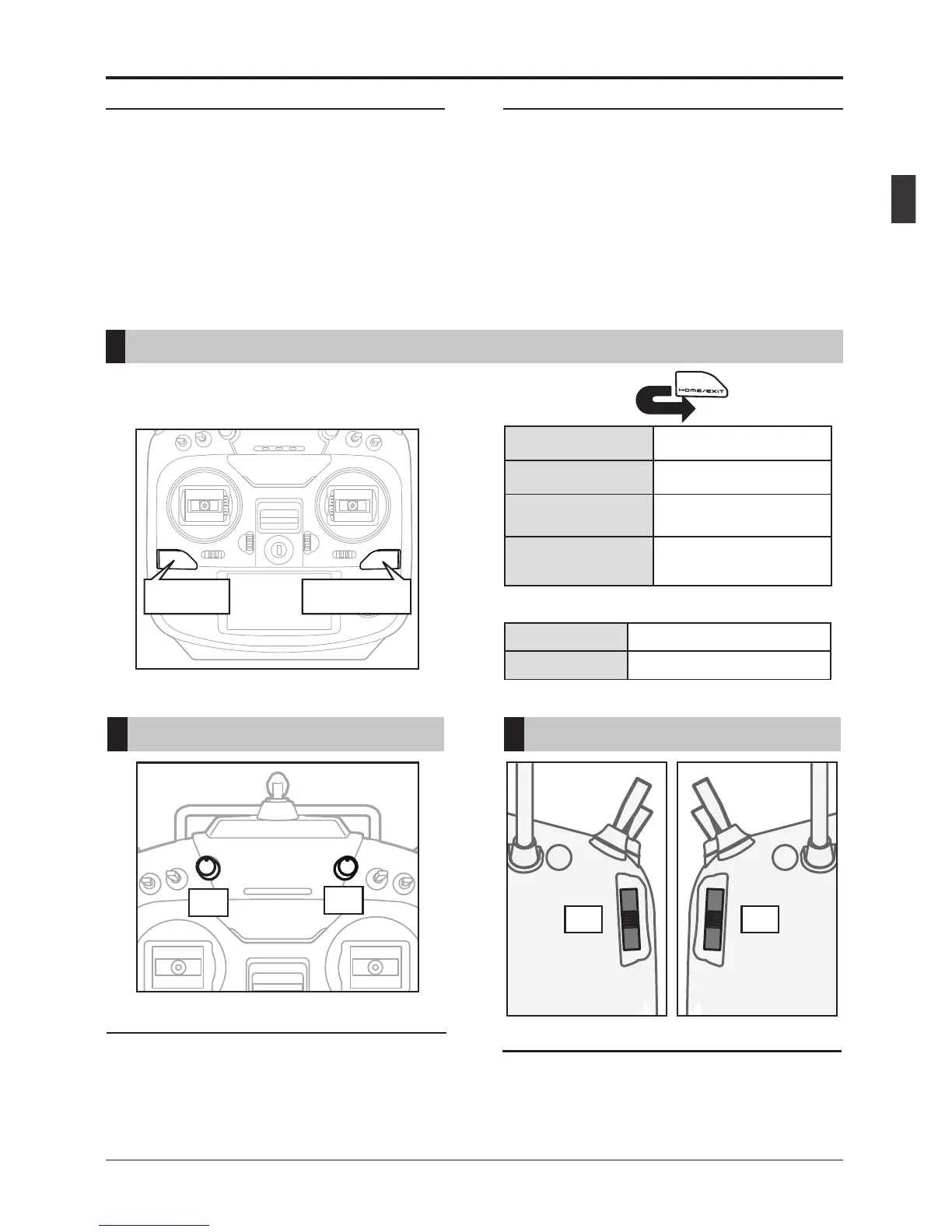

LS (Left), RS (right):
The slide lever LS and RS offer analog input.
*The T12K transmitter beeps when the lever comes to the
center.
*You can select a slide lever and set the movement
direction on the setting screen of mixing functions.
Volume LD and RD:
The volume LD and RD knobs allow for
analog input.
*The T12K transmitter beeps when the volume knob
reaches the center position.
*You can use each setting screen of the mixing functions to
select volumes and dene the direction of a movement.
HOME/EXIT
Button
U.MENU/MON.
Button
RETURN
Press
Return to the previous
screen
Press and hold
Return to the Home
screen
If pushed in HOME
screen.
To TELEMETRY display
Push and hold for
one (1) second from
HOME screen.
Key lock On or O
Press To SERVO MONITOR display
Press and hold To User Menu display
HOME/EXIT:
U.MENU/MON.:
HOME/EXIT and U.MENU/MON. Button
Volume Slide Lever
S1 button:
When there is a next page on a menu screen or
setup screen, you can go to that page by touching
the S1 button. In this case, the cursor moves to
the screen title item of the page.
Exiting setup screen:
To end the operation on a setup screen and
return to the menu screen, move the cursor to the
screen title item and push the RTN button.
To return to home screen directly, touch the
HOME/EXIT button for 1 second.
Alternatively, move the cursor to the screen
title item and touch the RTN button to return to
the home screen from a menu screen.
LD
RD
LS RS
To Next Page
