P a g e | 129

UCM6100 Series User Manual

Version 1.0.18.13

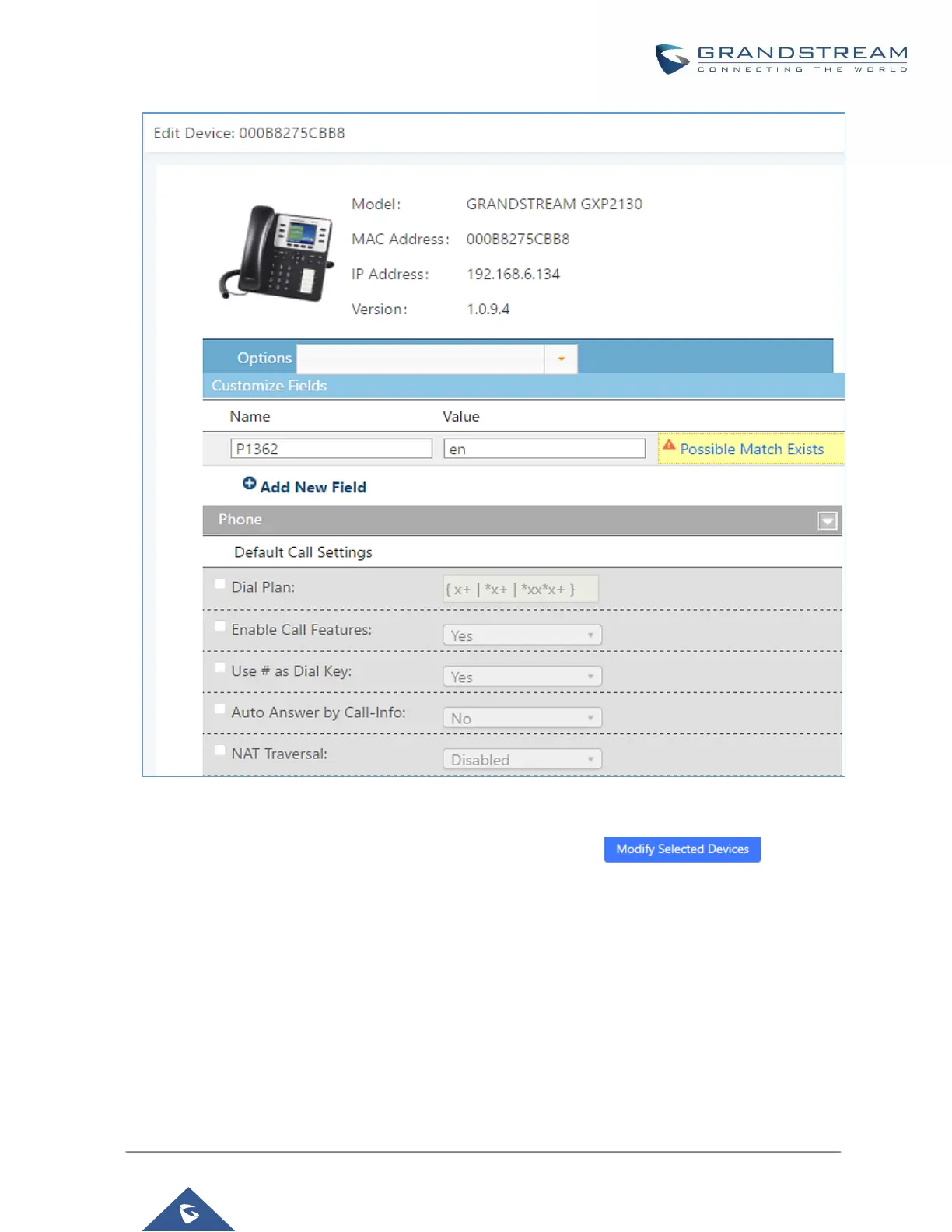

Figure 71: Add P Value in Customize Device Settings

• Select multiple devices that need to be modified and then click on to batch modify

devices.

If selected devices are of the same model, the configuration dialog is like the following figure. Configurations in

five levels are all available for users to modify.
