P a g e | 76

UCM6100 Series User Manual

Version 1.0.18.13

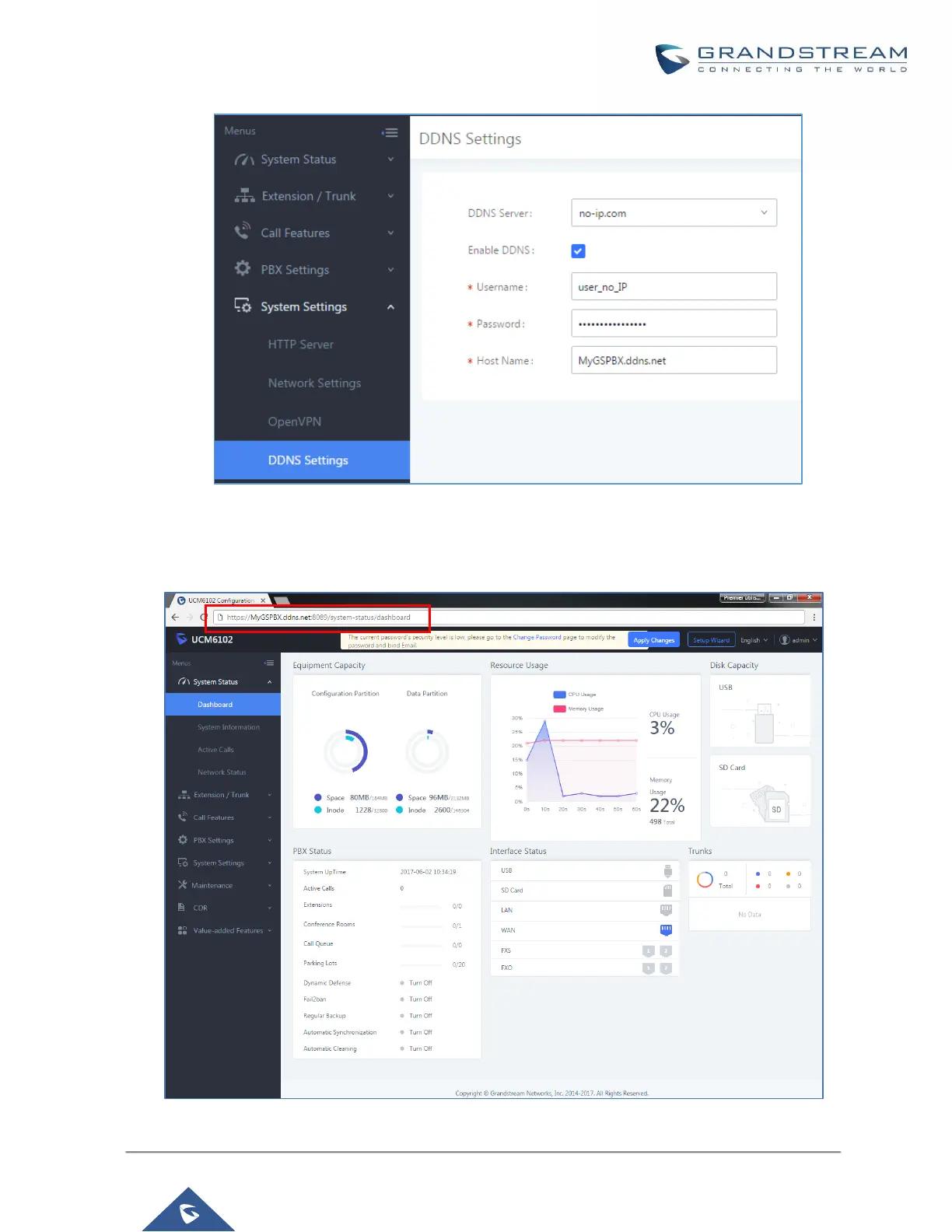

Figure 27: UCM6100 DDNS Setting

3. Now you can use domain name instead of IP address to connect to the UCM6100 Web GUI.

Figure 28: Using Domain Name to Connect to UCM6100
