Transparent Call-Info header

UCM supports transparent call info header in order to integrate GDS door system with GXP21XX Color phones,

the UCM will forward the call-info header to the phone in order to request the live view from GDS door system

and give the option to open the door via softkey.

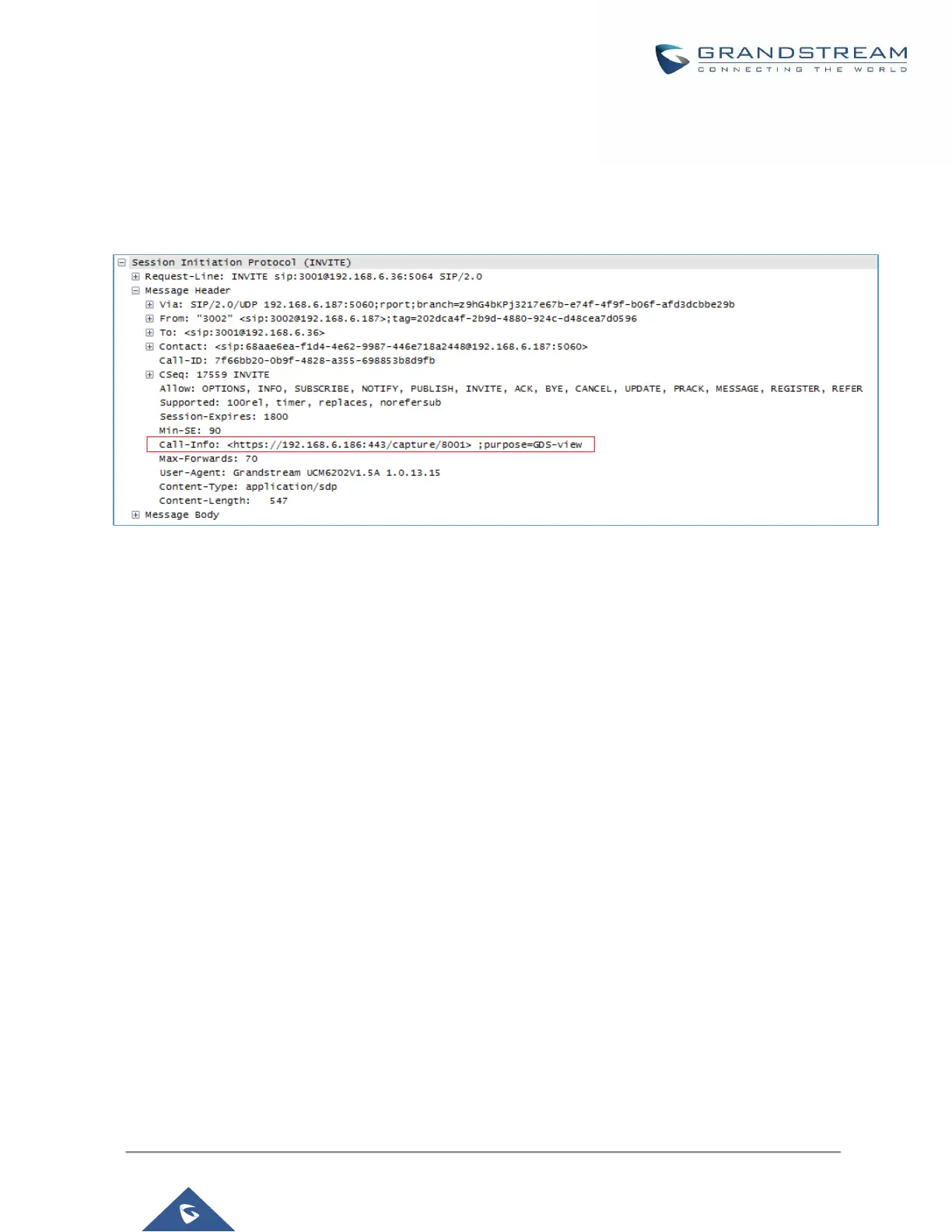

Figure 216: Transparent Call-Info
