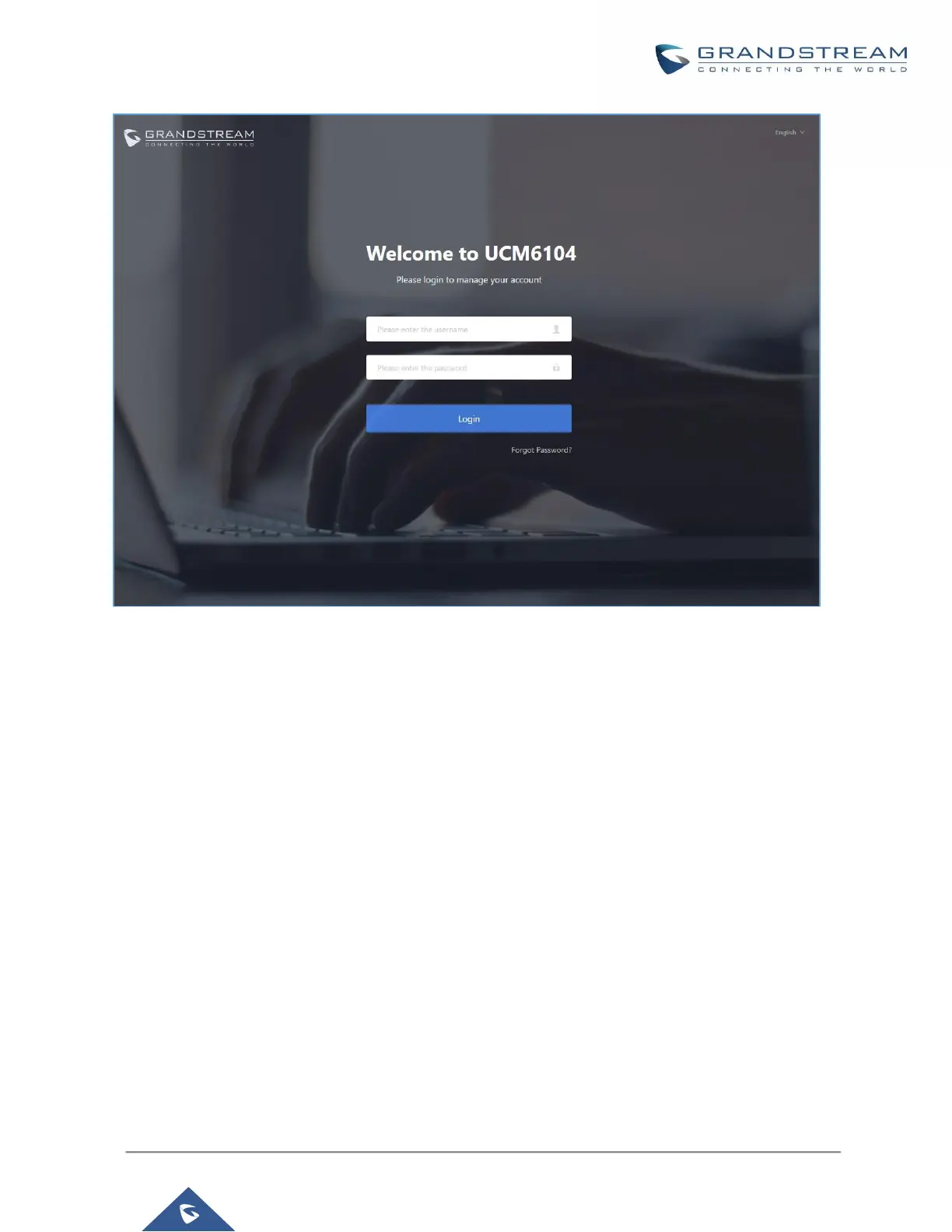

Figure 9: UCM6102 Web GUI Login Page
To access the Web GUI:
1. Connect the computer to the same network as the UCM6100.
2. Ensure the device is properly powered up and shows its IP address on the LCD.
3. Open a Web browser on the computer and enter the Web GUI URL in the following format:
http(s)://IP-Address:Port
where the IP-Address is the IP address displayed on the UCM6100 LCD.
By default, the protocol is HTTPS and the Port number is 8089.
For example, if the LCD shows 192.168.40.167, please enter the following in your web browser:
https://192.168.40.167:8089
4. Enter default administrator username “admin” and password.
Note: Units manufactured starting January 2017 have a unique random password printed on the sticker located
on the back of the unit. It is highly recommended to change the default password after login for the first time.
Older units have default password “admin”. See below pictures for the location of the default random password:
