P a g e | 406

UCM6100 Series User Manual

Version 1.0.18.13

System Cleanup/Reset

Reset and Reboot

Users could perform reset and reboot under Web GUI→Maintenance→System Cleanup/Reset→Reset and

Reboot.

To factory reset the device, select the mode type first. There are two different types for reset.

• User Data

All the data including voicemail, recordings, IVR Prompt, Music on Hold, CDR and backup files will be cleared.

• All

All the configurations and data will be reset to factory default.

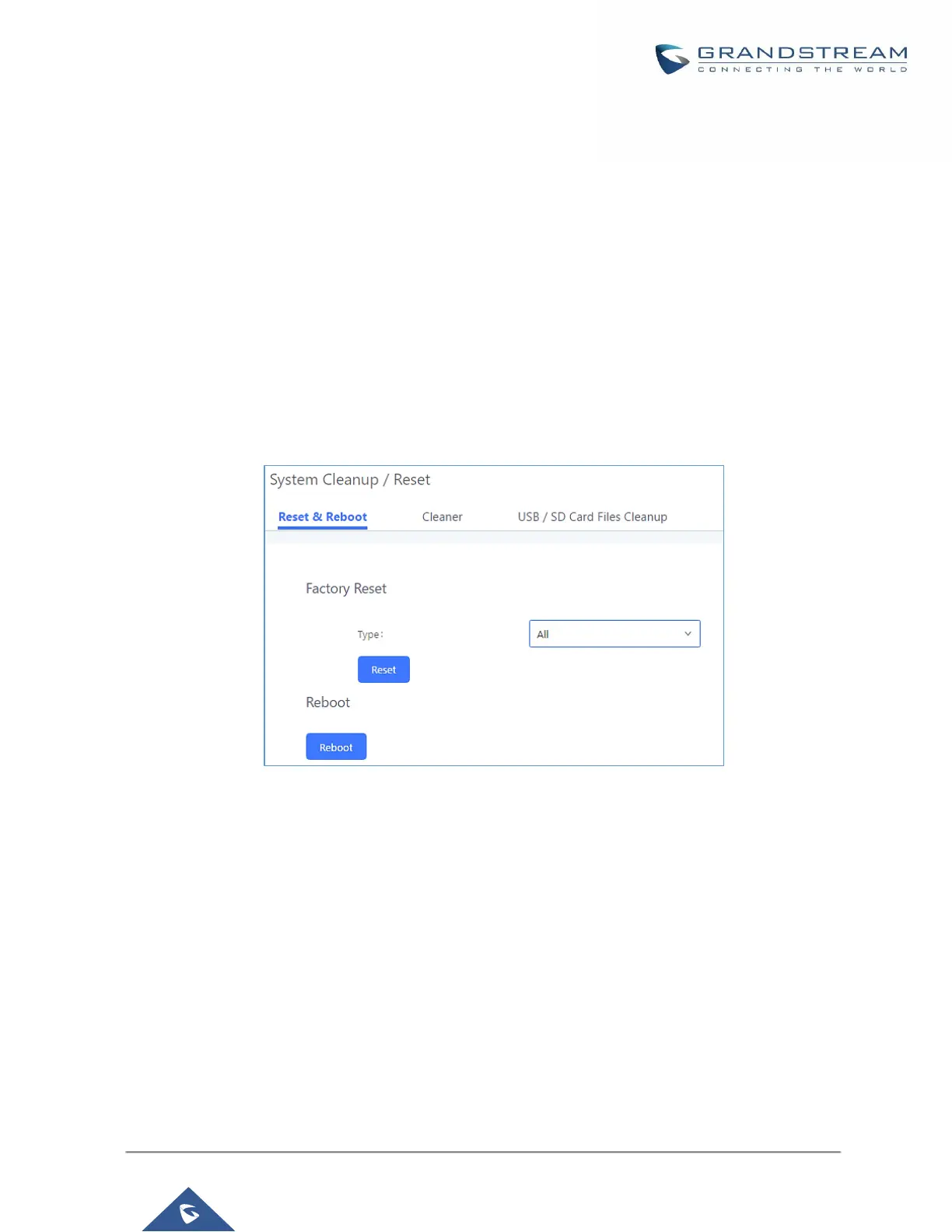

Figure 296: Reset and Reboot

Cleaner

Users could configure to clean the Call Detail Report/Voice Records/Voice Mails/FAX automatically under Web

GUI→Maintenance→System Cleanup/Reset→Cleaner.

The following screenshot show the settings and parameters to configure the cleaner feature on UCM6100.
