Configure the IPv4 or IPv6 gateway address so that the UCM6100 can reach the
destination via this gateway. Gateway address is optional.
Example:
192.168.40.5 or 2001:740:D::1
Specify the network interface on the UCM6100 to reach the destination using the
static route.
For UCM6102, LAN interface is eth0; WAN interface is eth1.
For UCM6104, LAN1 interface is eth0; WAN interface is eth1.
For UCM6108/UCM6116, only LAN interface is available.
Static routes configuration can be reset from LCD menu→Network Menu.
The following diagram shows a sample application of static route usage on UCM6104.

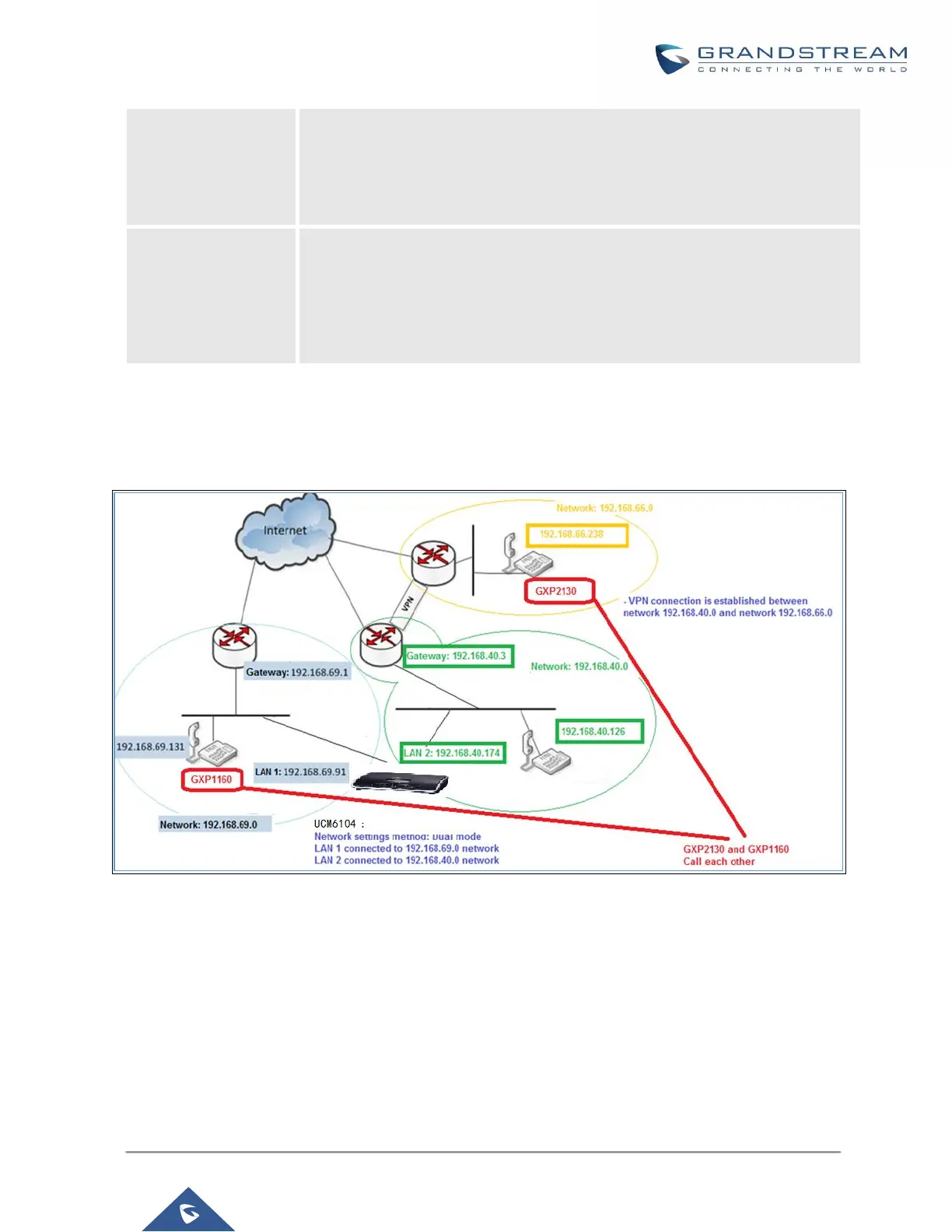

Figure 20: UCM6104 Static Route Sample
The network topology of the above diagram is as below:
• Network 192.168.69.0 has IP phones registered to UCM6104 LAN 1 address
• Network 192.168.40.0 has IP phones registered to UCM6104 LAN 2 address
• Network 192.168.66.0 has IP phones registered to UCM6104 via VPN
• Network 192.168.40.0 has VPN connection established with network 192.168.66.0
