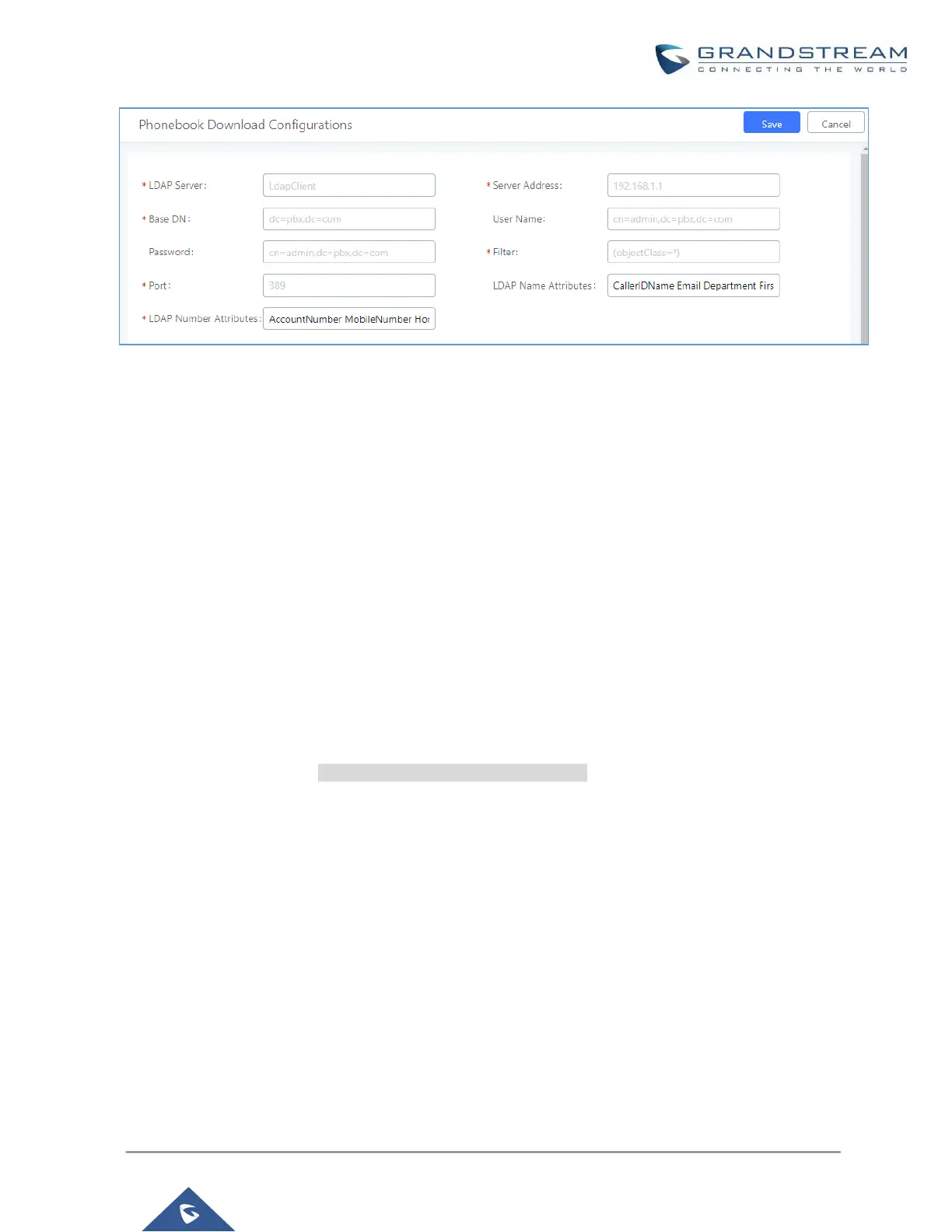

Figure 43: LDAP Client Configurations
To configure Grandstream IP phones as the LDAP clients for UCM, please refer to the following example:
• Server Address: The IP address or domain name of the UCM6510
• Base DN: dc=pbx,dc=com
• User Name: Please leave this field empty
• Password: Please leave this field empty
• LDAP Name Attribute: CallerIDName Email Department FirstName LastName
• LDAP Number Attribute: AccountNumber MobileNumber HomeNumber Fax
• LDAP Number Filter: (AccountNumber=%)
• LDAP Name Filter: (CallerIDName=%)
• LDAP Display Name: AccountNumber CallerIDName
• LDAP Version: If existed, please select LDAP Version 3
• Port: 389
The following figure shows the configuration information on a Grandstream GXP2170 to successfully use the
LDAP server as configured in [Figure 33: LDAP Server Configurations].
