Grandstream Networks UCM6104

To Next Page

To Previous Page

P a g e | 352

UCM6100 Series User Manual

Version 1.0.18.13

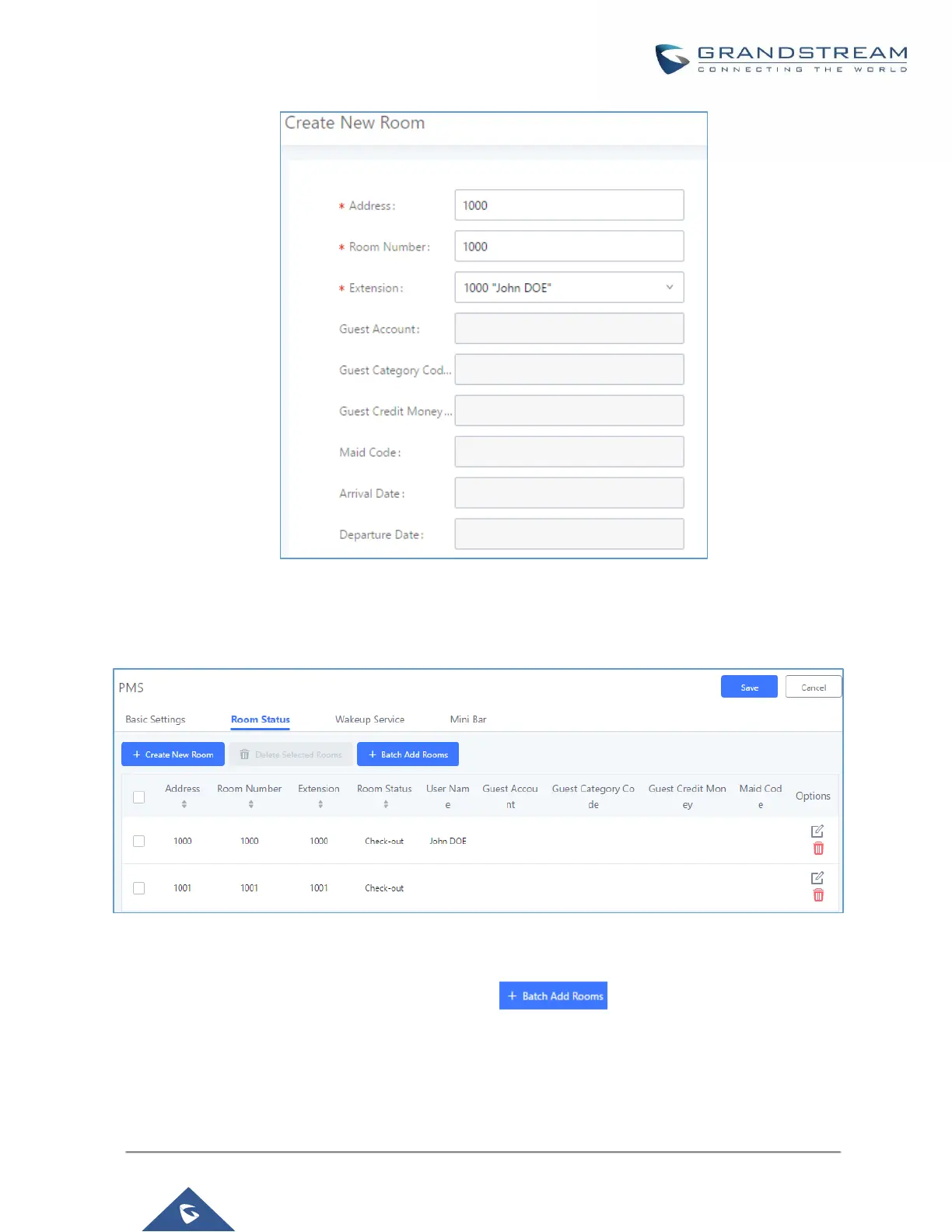

Figure 233: Create New Room

Click “Save” to create the new room, the fields above can be configured from the PMS platform, once set the

following screen will be shown:

Figure 234: Room Status

User can create a batch of rooms as well by clicking on , the following window will pop up:
