P a g e | 263

UCM6100 Series User Manual

Version 1.0.18.13

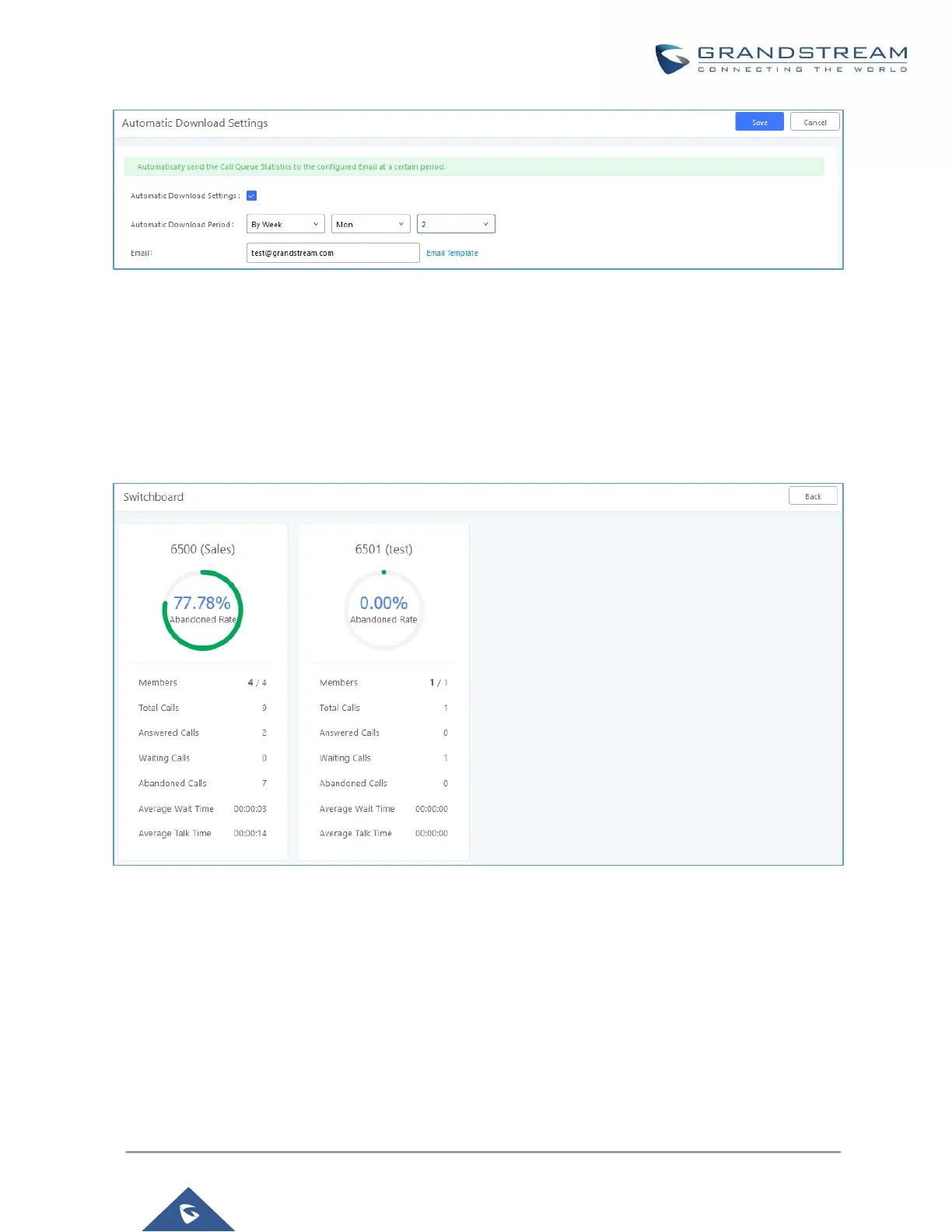

Figure 159 : Automatic Download Settings - Queue Statistics

Switchboard

Switchboard is a Web GUI tool for call queue monitoring and management, admin can access to it from the

menu Call Features→Call Queue then press « Switchboard ».

Following page will be displayed:

Figure 160 : Switchboard summary

Page above summarizes the available queues statistics and if one of the queues is clicked the user will be

directed to page below:
