P a g e | 203

UCM6100 Series User Manual

Version 1.0.18.13

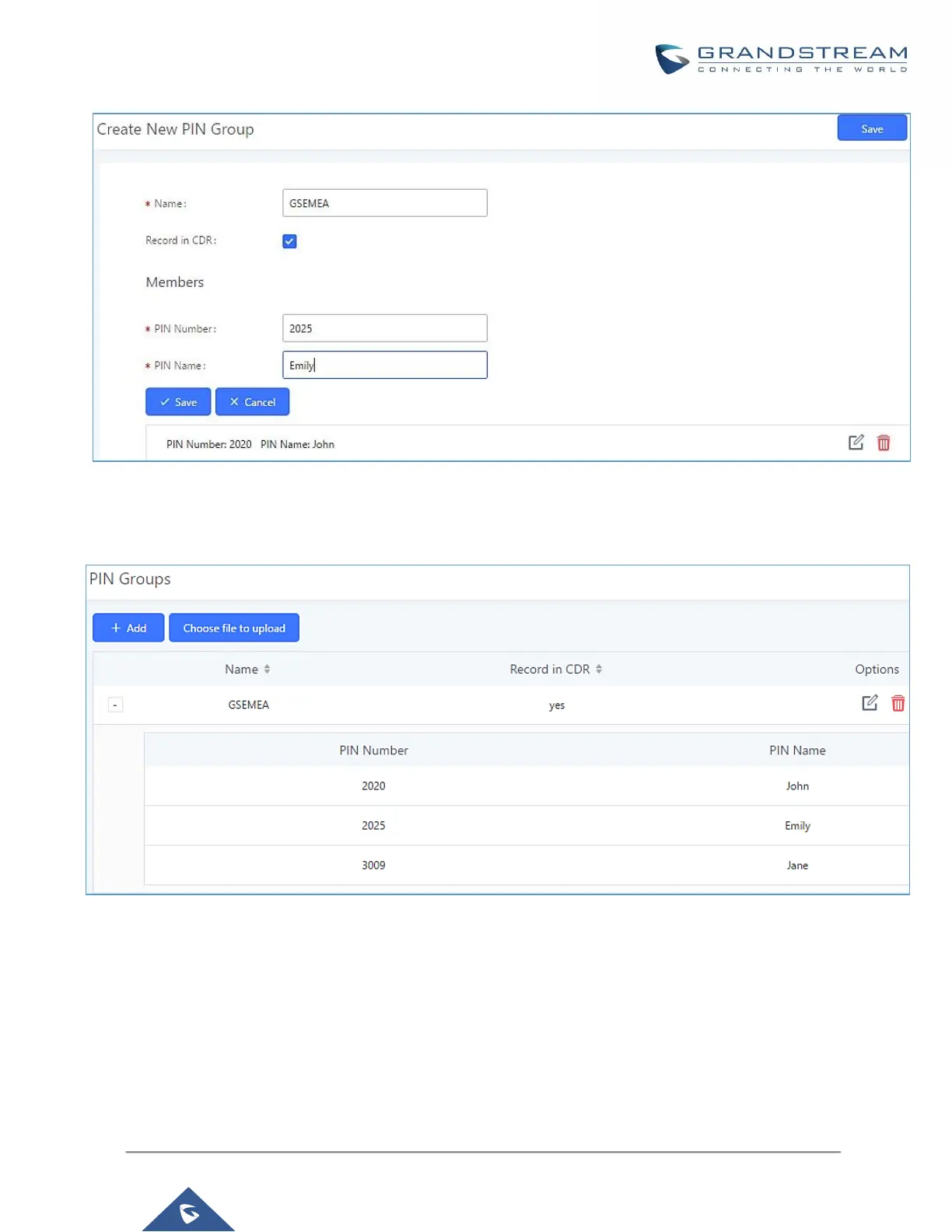

Figure 109: Create New PIN Group

The following screenshot shows an example of created PIN Groups and members:

Figure 110: PIN Members

Note:

If PIN group is enabled on outbound route level, password, privilege level and enable filter on source caller ID

will be disabled.
