P a g e | 416

UCM6100 Series User Manual

Version 1.0.18.13

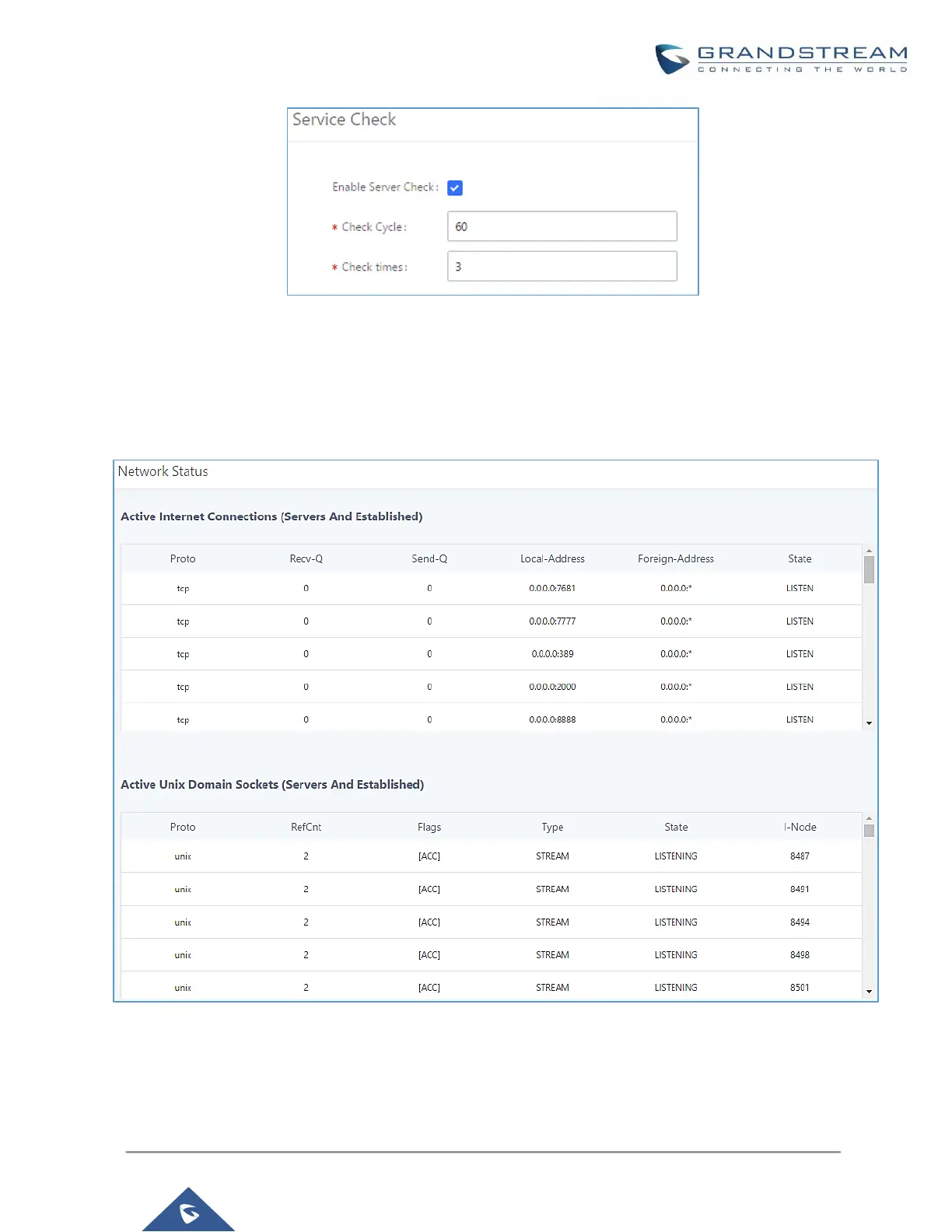

Figure 306: Service Check

Network Status

In UCM6100 Web GUI→System Status→Network Status, the users can view active Internet connections. This

information can be used to troubleshoot connection issue between UCM6100 and other services.

Figure 307: Network Status
