P a g e | 344

UCM6100 Series User Manual

Version 1.0.18.13

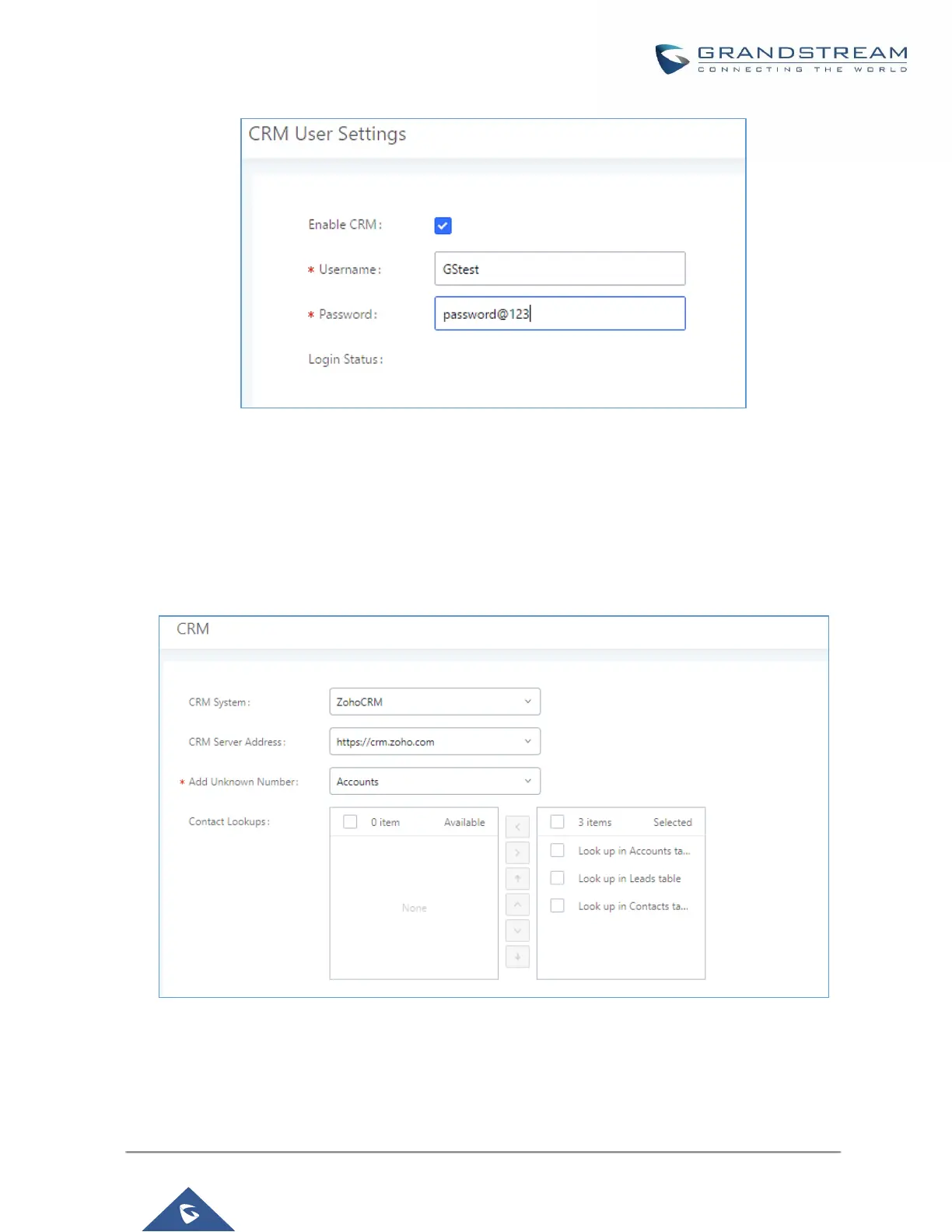

Figure 225: CRM User Settings

ZohoCRM

Configuration page of the ZohoCRM can be accessed via admin login, on the UCM webGUI→Value-added

Features→CRM.

Figure 226: ZohoCRM Basic Settings

1. Select “ZohoCRM” from the CRM System Dropdown in order to use ZohoCRM.
