P a g e | 130

UCM6100 Series User Manual

Version 1.0.18.13

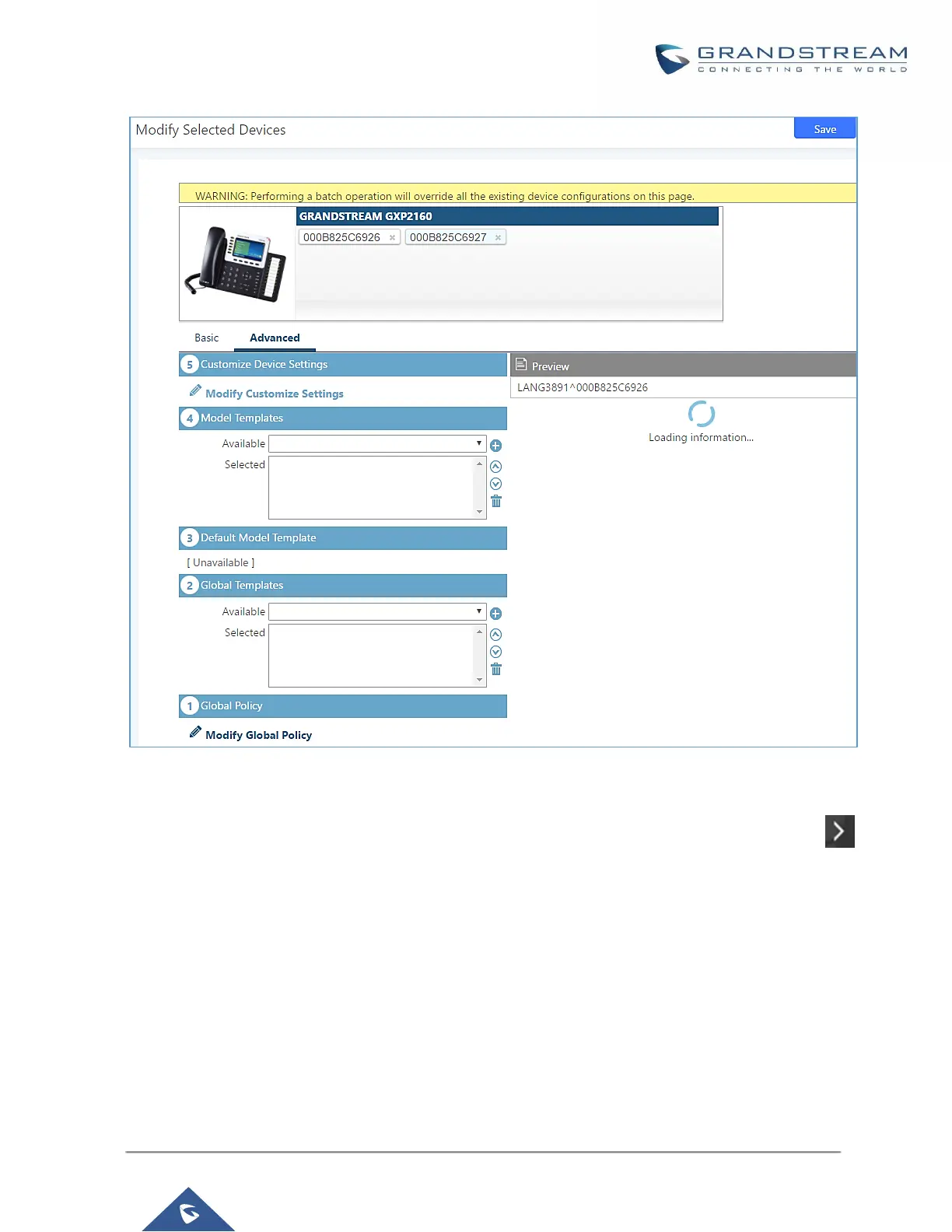

Figure 72: Modify Selected Devices - Same Model

If selected devices are of different models, the configuration dialog is like the following figure. Click on to

view more devices of other models. Users are only allowed to make modifications in Global Templates and

Global Policy level.
