P a g e | 250

UCM6100 Series User Manual

Version 1.0.18.13

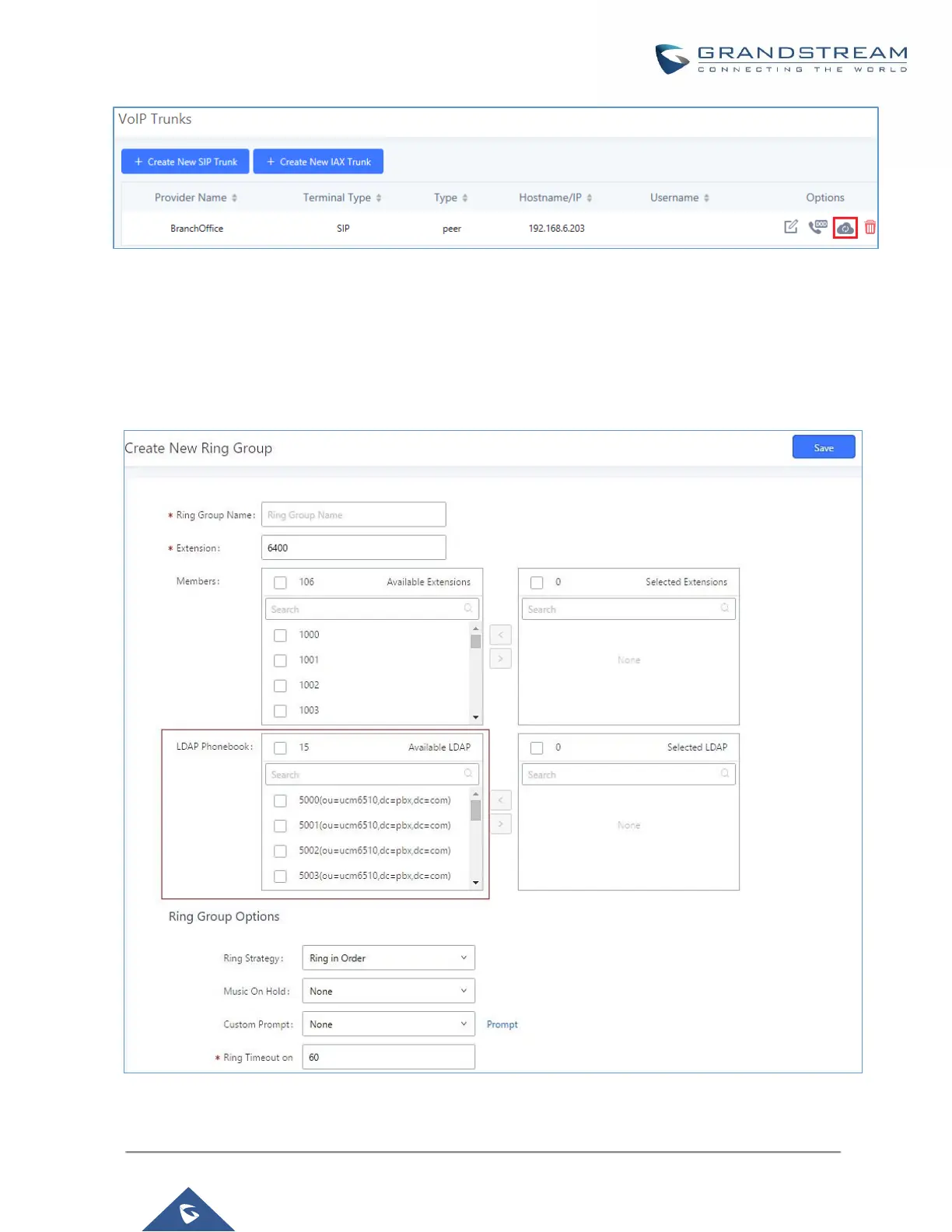

Figure 149: Manually Sync LDAP Server

4. Under Ring Groups setting page, click “Add”. Ring Groups can be found under Web GUI→Call

Features→Ring Groups.

5. If LDAP server is synced correctly, Available LDAP Numbers box will display available remote extensions

that can be included in the current ring group. Please also make sure the extensions in the peer UCM6100

can be included into that UCM6100’s LDAP contact.

Figure 150: Ring Group Remote Extension
