P a g e | 66

UCM6100 Series User Manual

Version 1.0.18.13

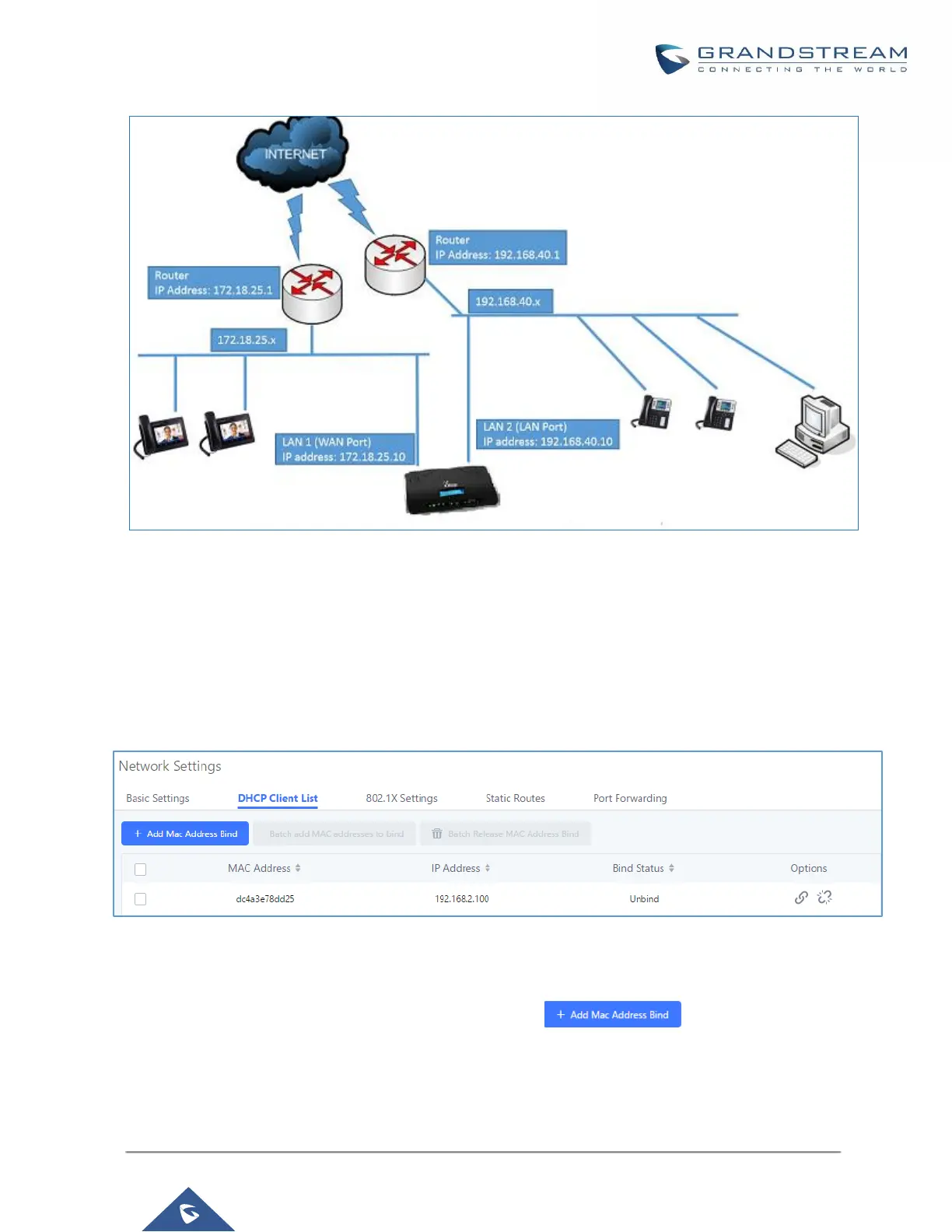

Figure 14: UCM6102 Network Interface Method: Dual

DHCP Client List

For UCM6102 that supports Route Mode, this feature can bind MAC to IP address on the LAN port.

When devices receive IP addresses from UCM6102 LAN port, they will be listed on the webUI under “System

Settings→Network Settings→DHCP Client List” as shown below.

Figure 15: DHCP Client List

User can bind manually a MAC to an IP address by clicking on , the following figure will pop

up.
