P a g e | 364

UCM6100 Series User Manual

Version 1.0.18.13

STATUS AND REPORTING

PBX Status

The UCM6100 monitors the status for Trunks, Extensions, Queues, Conference Rooms, Interfaces and Parking

lot. It presents administrators the real-time status in different sections under Web GUI→System

Status→Dashboard.

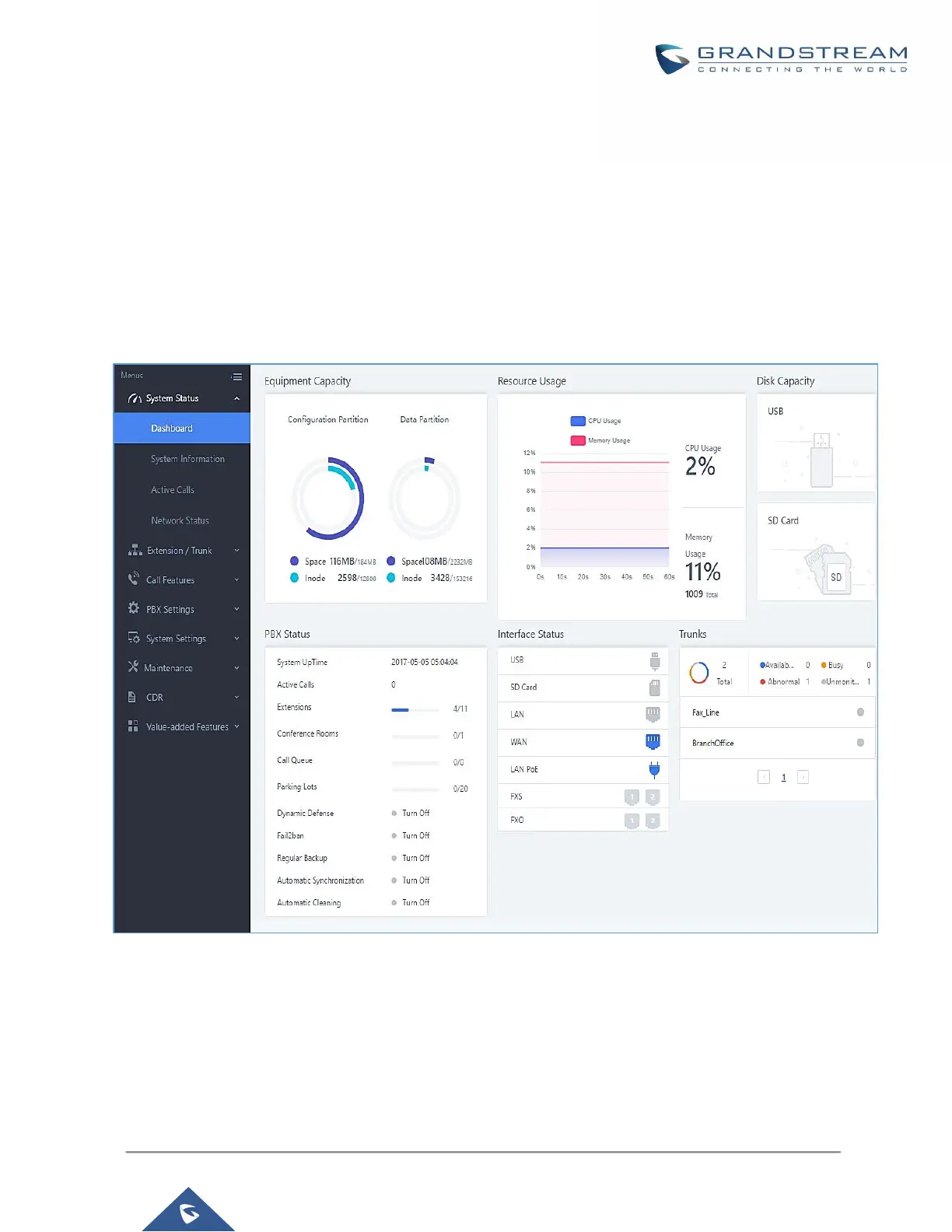

Figure 247: Status→PBX Status
