P a g e | 236

UCM6100 Series User Manual

Version 1.0.18.13

A new dialog window of voice prompt package list will be displayed. Users can see the version number (latest

version available V.S. current installed version), package size and options to upgrade or download the language.

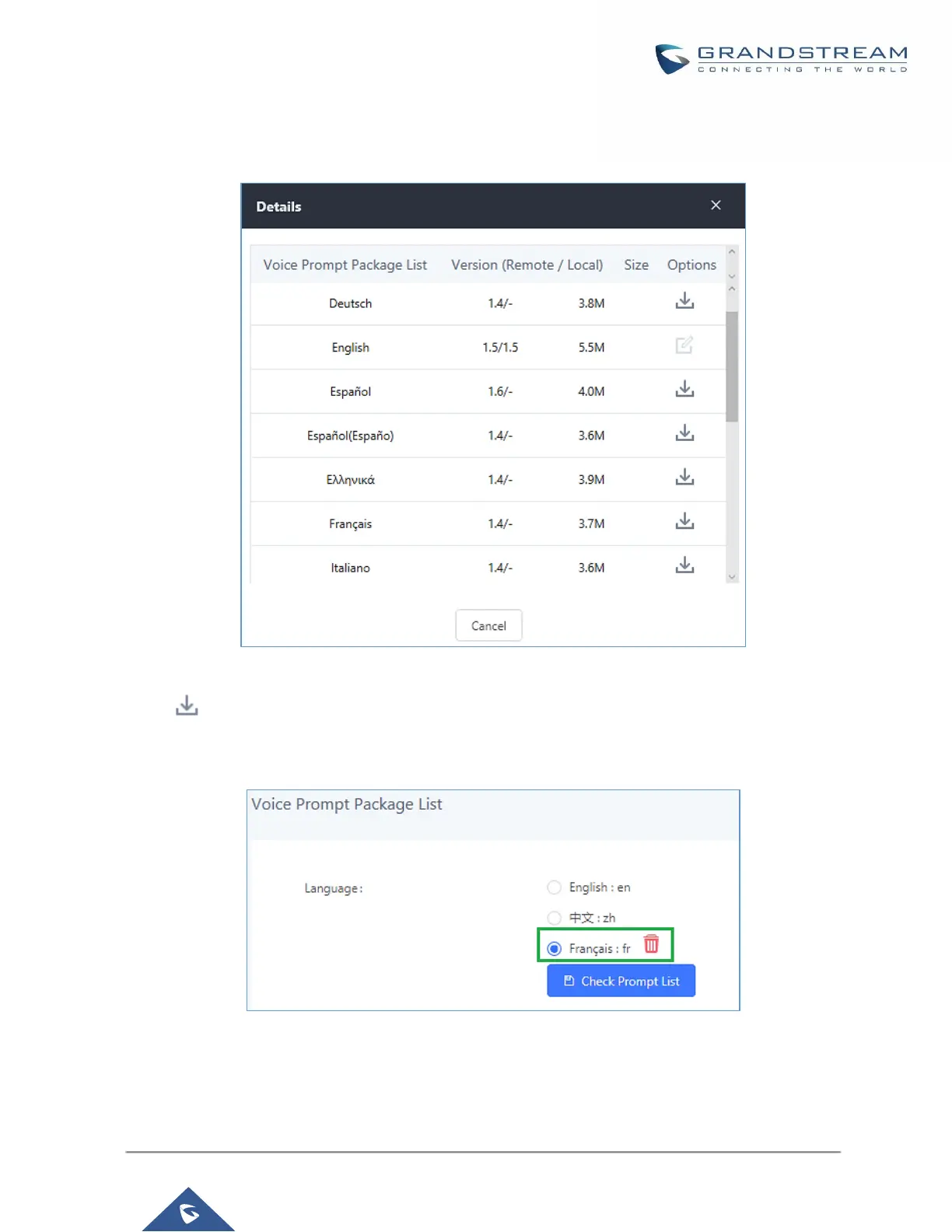

Figure 139: Voice Prompt Package List

Click on to download the language to the UCM6100. The installation will be automatically started once the

downloading is finished.

Figure 140: New Voice Prompt Language Added

A new language option will be displayed after successfully installed. Users then could select it to apply in the

UCM6100 system voice prompt or delete it from the UCM6100.
