P a g e | 192

UCM6100 Series User Manual

Version 1.0.18.13

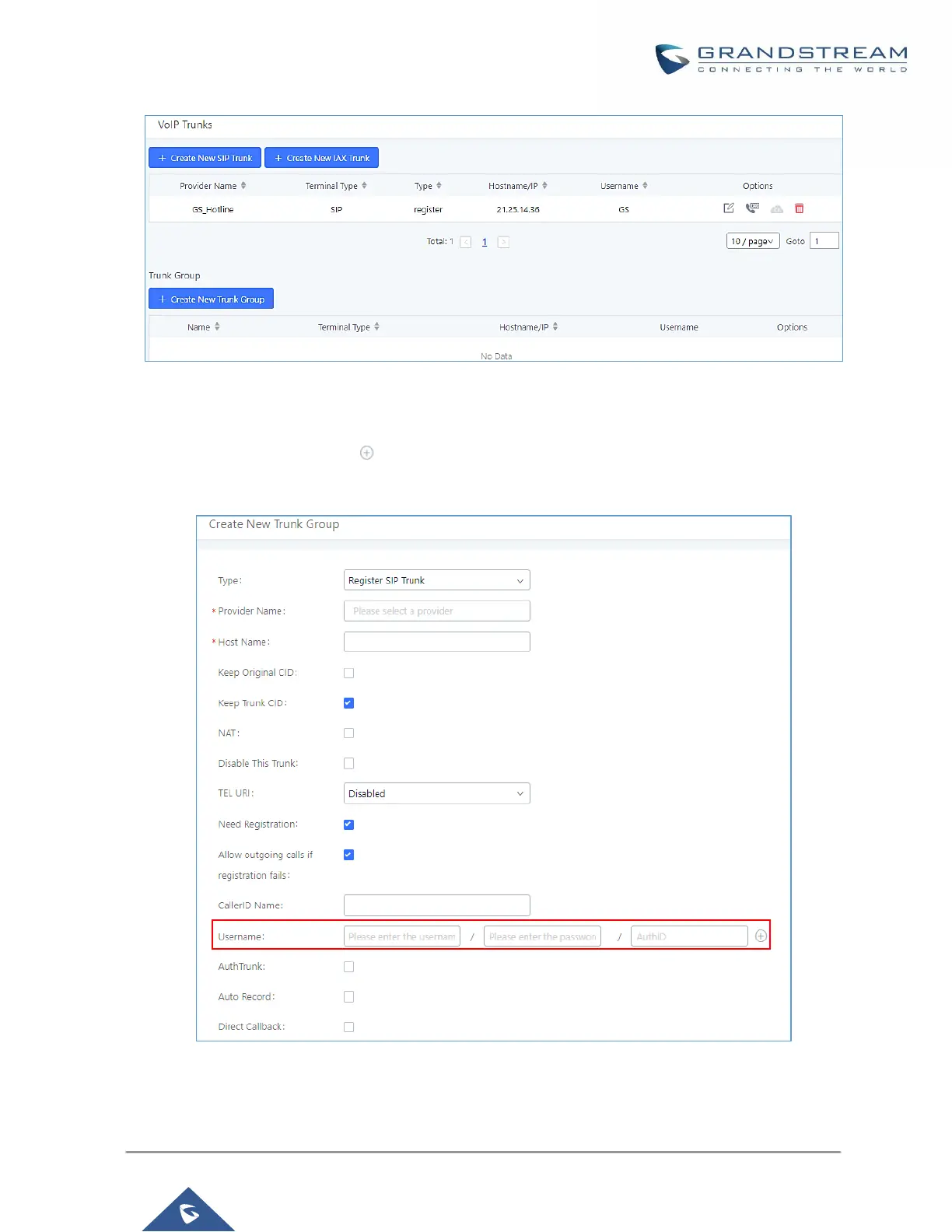

Figure 98: Trunk Group

Once creating the new trunk group and configuring the SIP settings, users can add multiple accounts within the

configured SIP server by pressing button and configuring the username, password and authentication ID

fields.

Figure 99: Trunk Group Configuration
