P a g e | 174

UCM6100 Series User Manual

Version 1.0.18.13

Using Extension Groups

Here is an example where the extension group can be used. Go to Web GUI→Extension/Trunk→Outbound

Routes and select "Enable Filter on Source Caller ID". Both single extensions and extension groups will show

up for users to select.

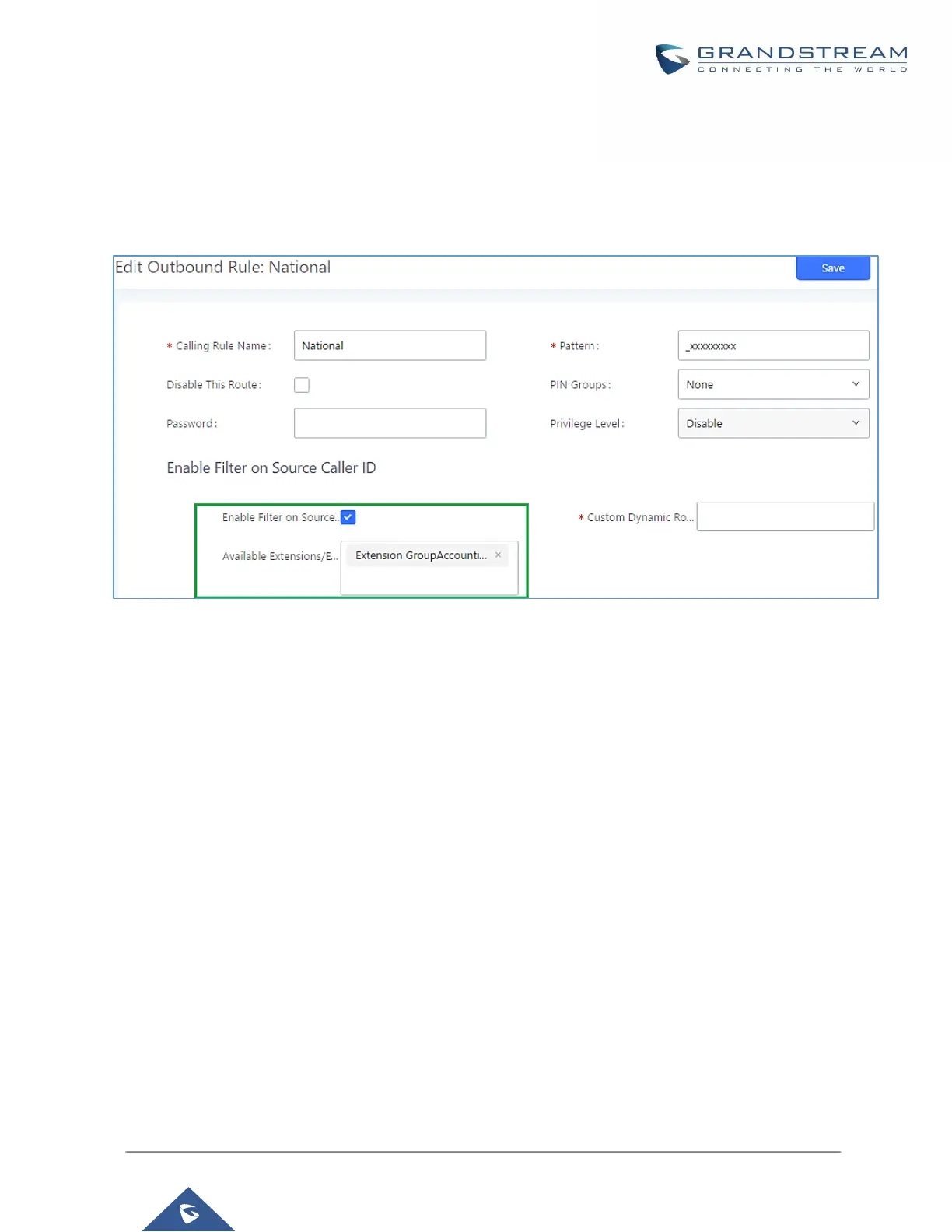

Figure 93: Select Extension Group in Outbound Route
