P a g e | 194

UCM6100 Series User Manual

Version 1.0.18.13

7. Click "Save" at the bottom.

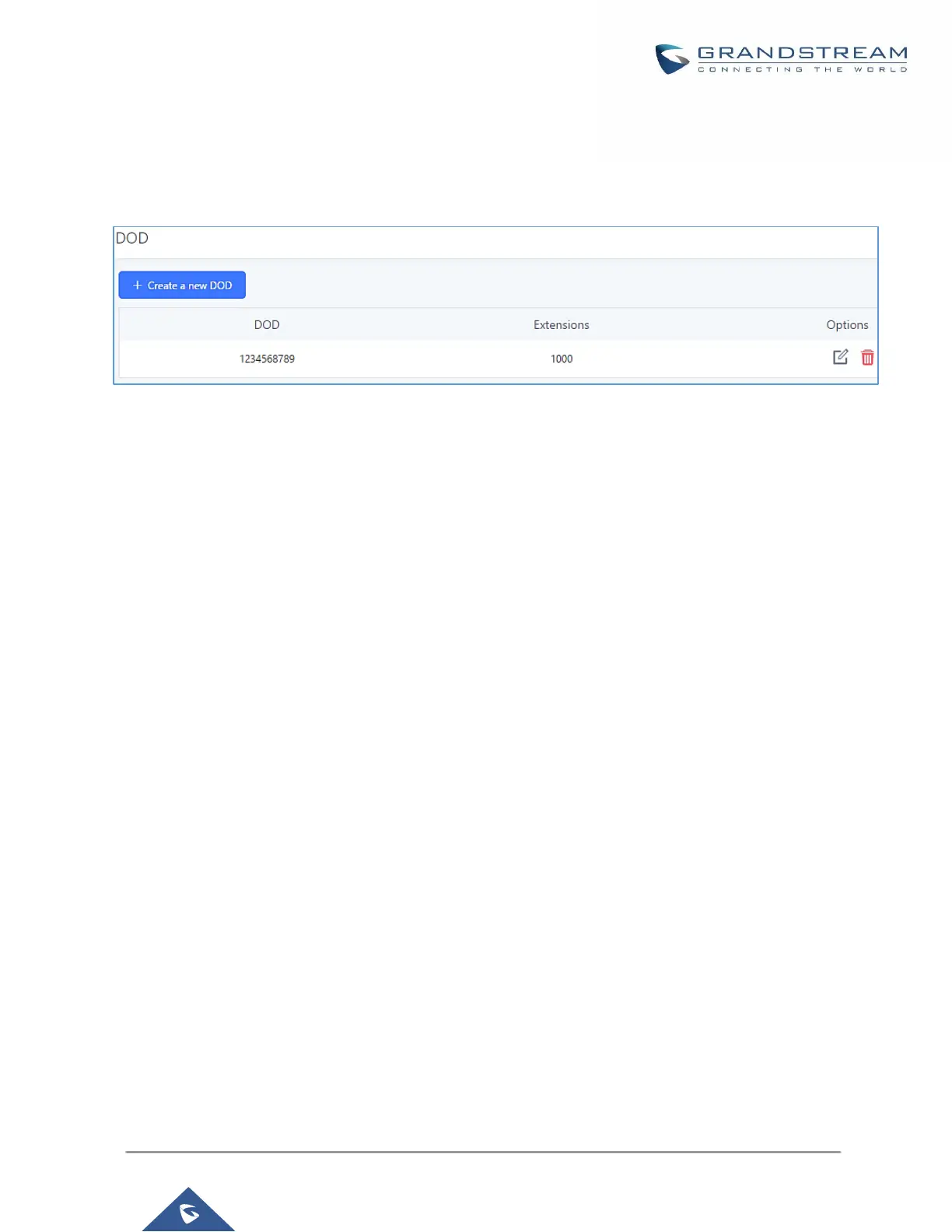

Once completed, the user will return to the EDIT DOD page that shows all the extensions that are associated to

a particular DOD.

Figure 101: Edit DOD
