7. DISASSEMBLY AND ADJUSTMENT
7.5.10 Y Drive Belt
How to detach the Y drive belt
(1) Detach the pen block from the Y bar (See the section 7.3.1).
(2) Detach the Y bar (See the section 7.5.1).
(3) Detach the Y motor (See the section 7.4.1).

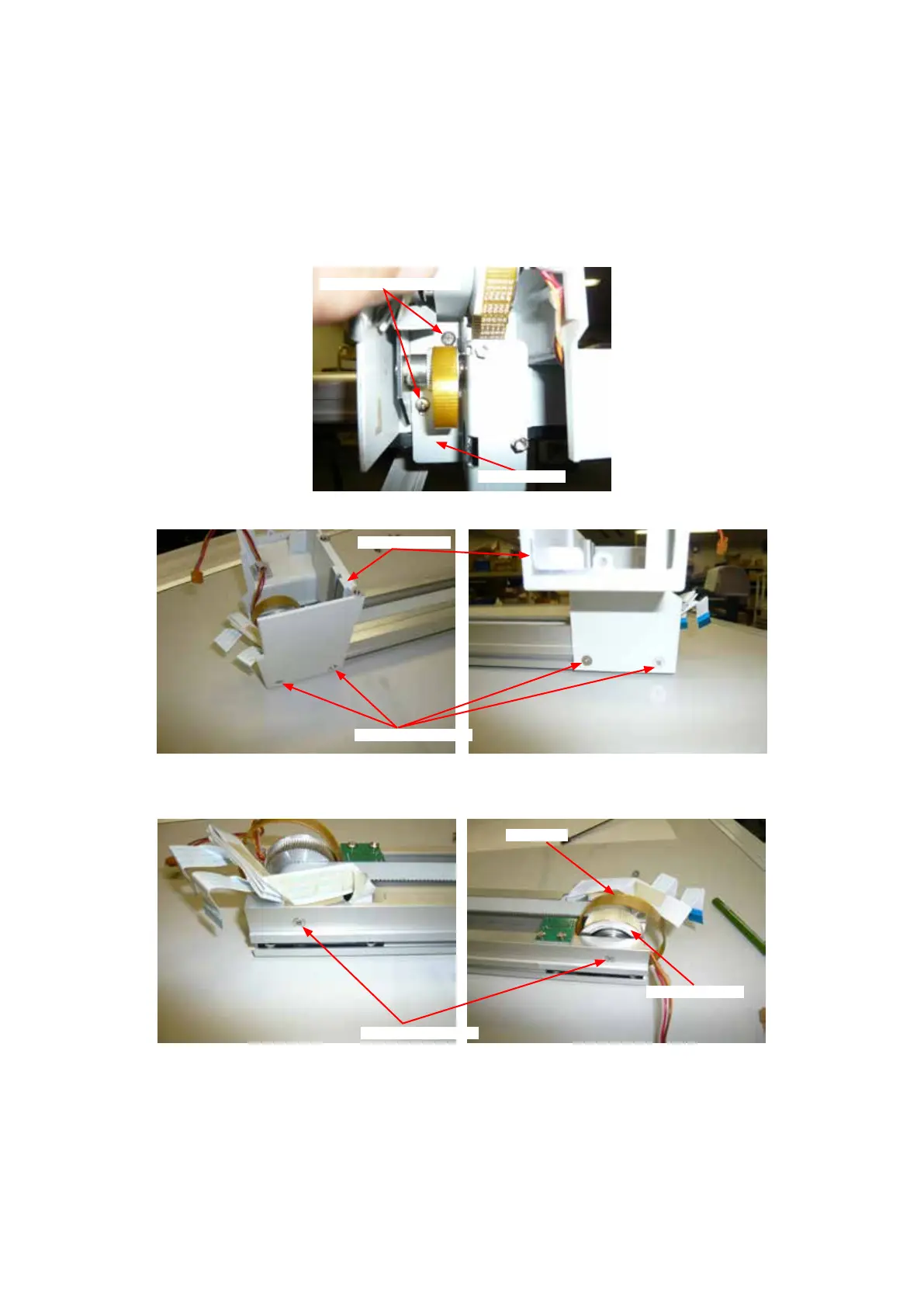

(4) Remove the two M4L8 binding head screws holding the Y motor bracket, and then detach it.
M4L8 binding head screw
Y motor bracket
(5) Remove the four M4L8 at head screws holding the Y gear box cover, and then detach it.
M4L8 at head screw
Y gear box cover
(6) Detach the Y belt (See the section 7.5.5).
(7) Remove the two M3L6 at head screws holding the Y drive belt pulley, and then detach it.
M3L6 at head screw
Y drive belt
Y drive belt pulley
(8) Detach the Y drive belt from the Y drive belt pulley.
