GRAPHTEC FC2250 - Rear X Slider

FC2250-UM-251-9370 7-65
7. DISASSEMBLY AND ADJUSTMENT
7.6.3 Rear X Slider
How to detach the rear X slider
(1) Detach the pen block from the Y bar (See the section 7.3.1).
(2) Detach the Y bar (See the section 7.5.1).
(3) Detach the rear X belt (See the section 7.2.5).

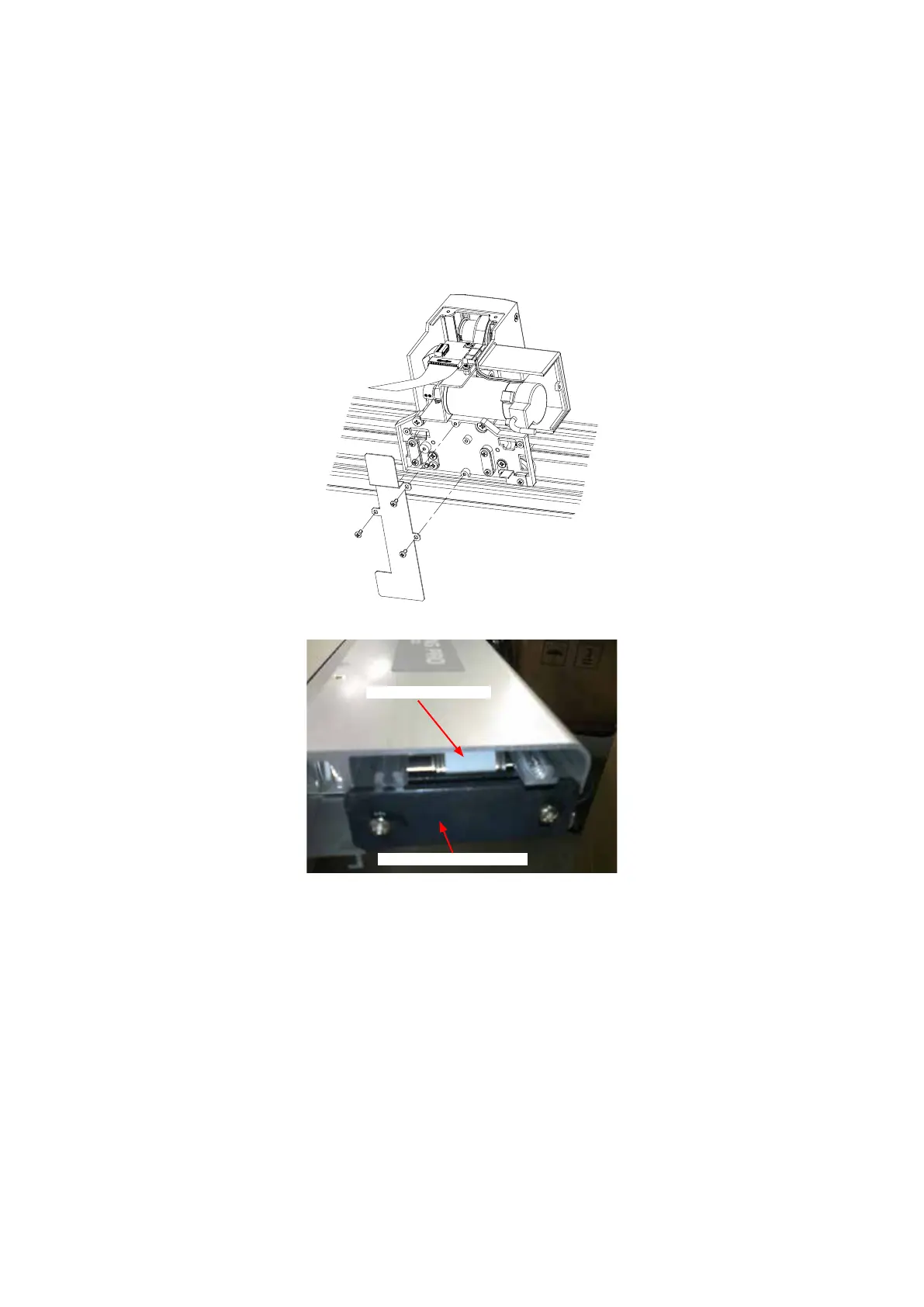

(4) Remove the three M3 binding head screws holding the X flexible cable bracket, then detach the X
flexible cable bracket.
(5) Detach the rear X belt tension bracket and the idler pulley from the rear X rail.
Rear X belt tension bracket
Rear X belt idler pulley
(6) Detach the rear X belt tension bracket and the idler pulley from the rear X rail.
(7) Slide out the rear X slider from the rear X rail.
How to reinstall the rear X slider
(1) Reattach the rear X slider in the reverse order in which it was detached.
(2) Adjust the rear X slider roller tension (See the section 7.6.4).
(3) Adjust the rear X belt tension (See the section 7.2.7).
