7. DISASSEMBLY AND ADJUSTMENT
7. DISASSEMBLY AND ADJUSTMENT
7.1 Outer Part
7.1.1 Right Front Cover
How to detach the right front cover

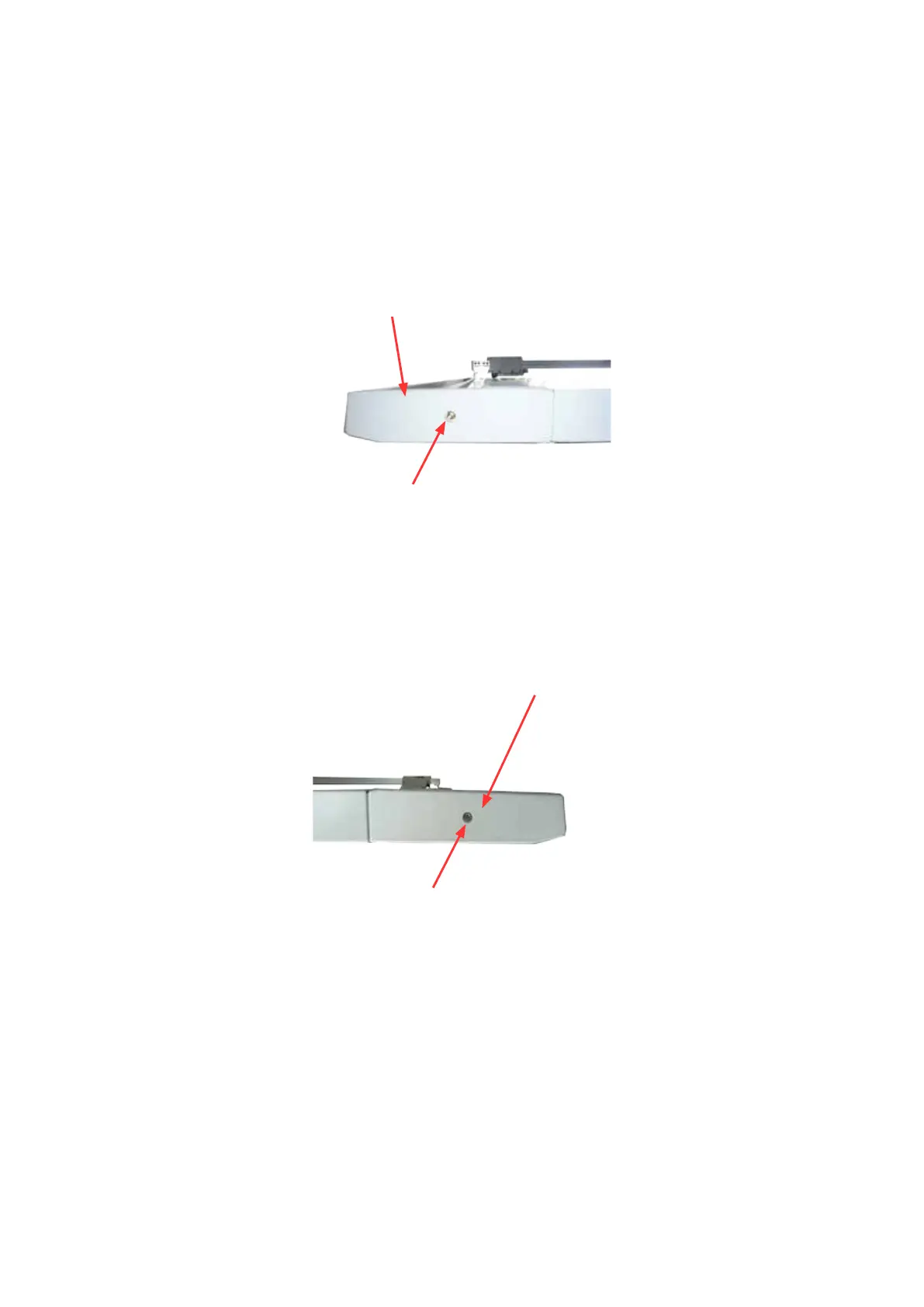

(1) Remove the M3L8 self-tapping screw holding the right front cover, and then detach it.
Right front cover
M3L8 Self-tapping screw
How to reinstall the right front cover
(1) Reattach the right front cover in the reverse order in which it was detached.
7.1.2 Left Front Cover
How to detach the left front cover
(1) Remove the M3L8 self-tapping screw holding the left front cover, and then detach it.
Left front cover
M3L8 Self-tapping screw
How to reinstall the left front cover
(1) Reattach the left front cover in the reverse order in which it was detached.
