FC2250-UM-251-9370 7-4
7. DISASSEMBLY AND ADJUSTMENT
7.1.7 Y Motor Cover
How to detach the Y motor cover

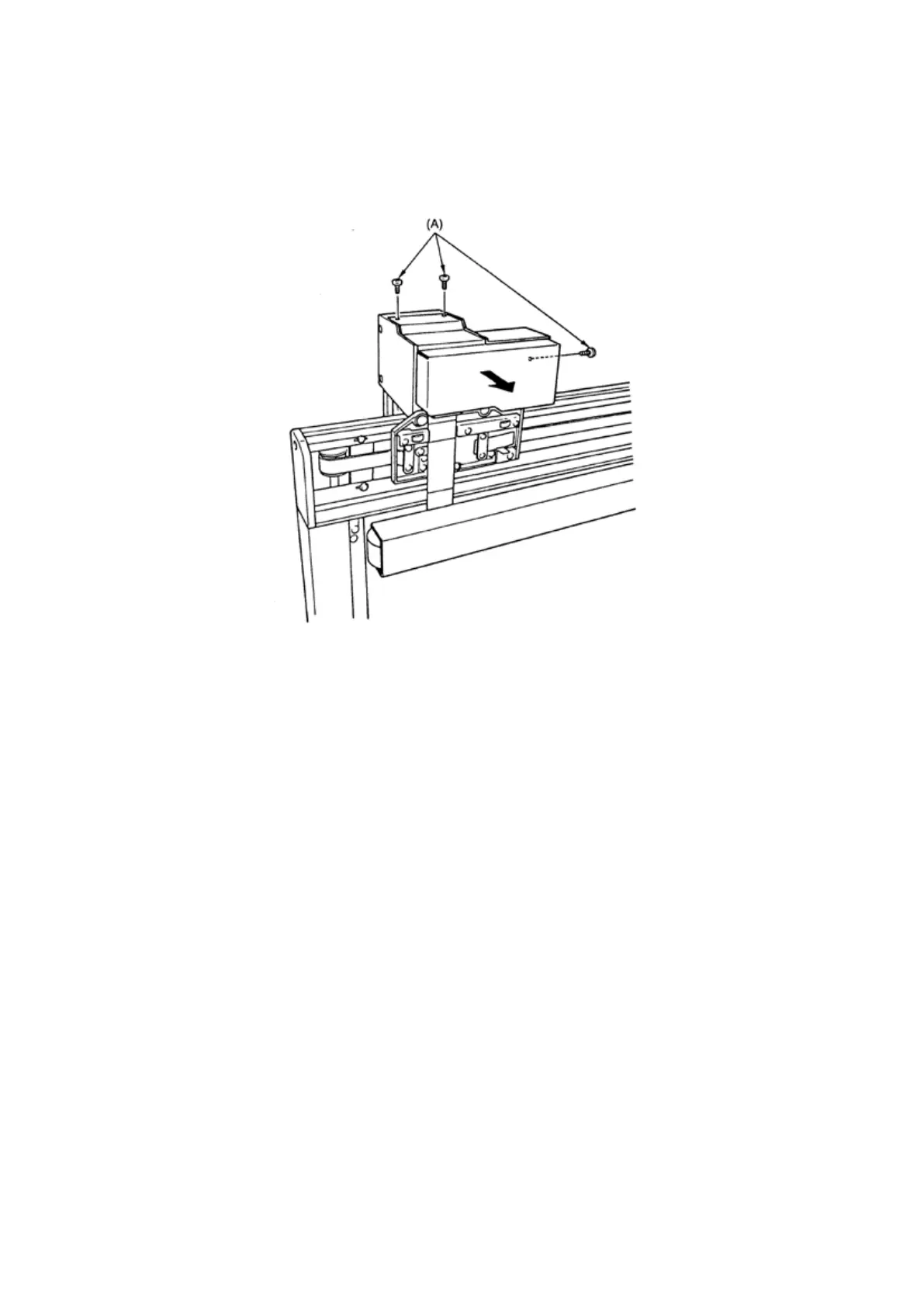

(1) Remove the three M3 binding head screws indicated by the (A) arrows, then remove the Y motor cover
in the direction indicated by the arrow.
How to reinstall the Y bar cover
(1) Reattach the Y motor cover in the reverse order in which it was detached.
