GRAPHTEC FC2250 - Cutter Pen Nomenclature

FC2250-UM-251-9370 2-5
2. Description of Parts
2.4 Cutter Pen Nomenclature
CAUTION
• Handle cutter blades with care!

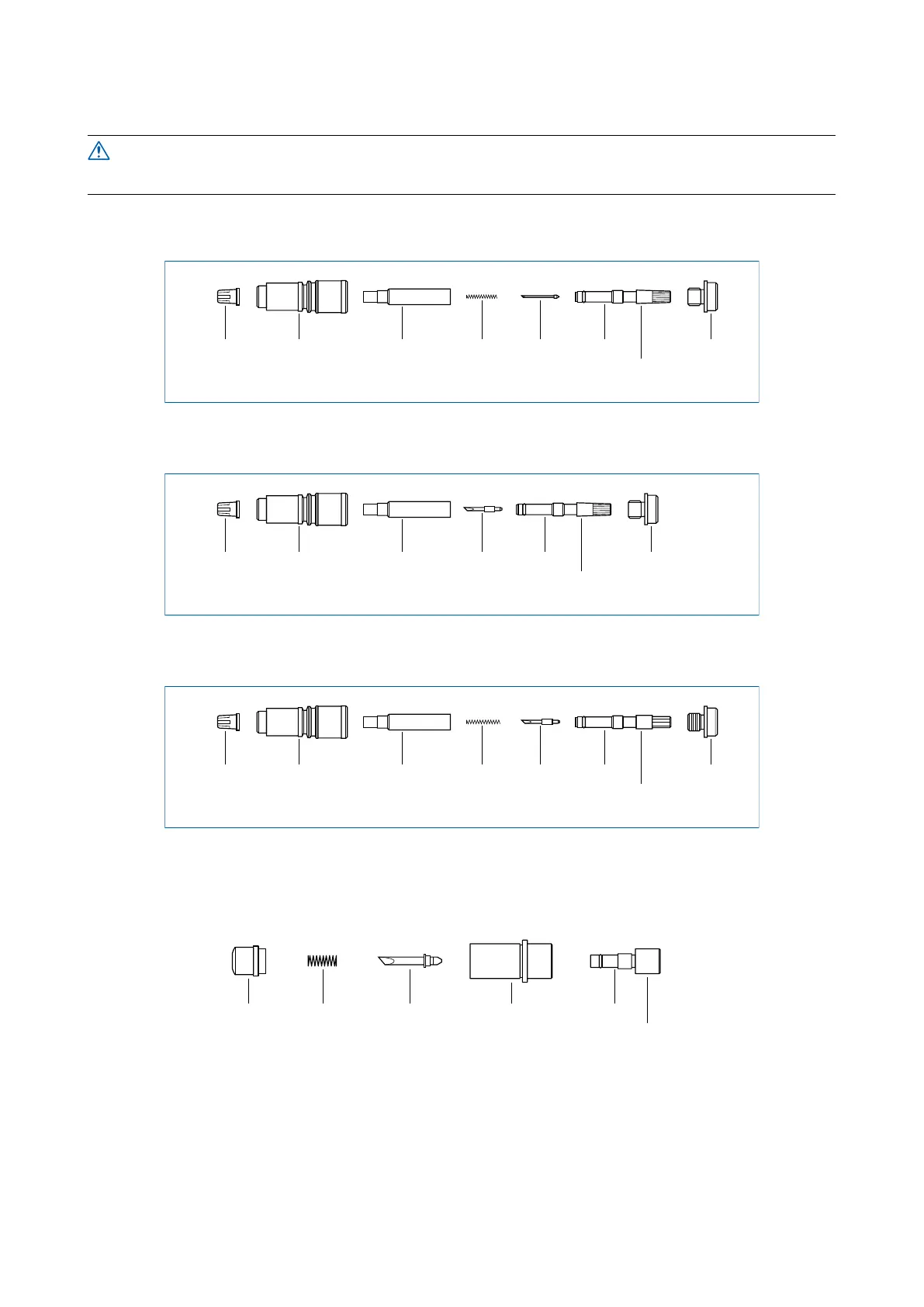

Structure of the PHP31-CB09-HS Cutter Pen
(for cutter blades of 0.9 mm diameter)
* The CB09UA supersteel blade is shown in the figure above.
Protective cap Plunger Holder A Spring Cutter blade* Holder B Plunger cap
Blade length adjustment knob (blue)
Structure of the PHP31-CB15-HS Cutter Pen
(for cutter blades of 1.5 mm diameter)
Protective cap Plunger Holder A Cutter blade* Holder B Plunger cap
Blade length adjustment knob (red)
* The CB15U supersteel blade is shown in the figure above.
Structure of the PHP31-CB15B-HS Cutter Pen
(for cutter blades of 1.5 mm diameter)
Protective cap Plunger Holder A Spring Cutter blade* Holder B Plunger cap
Blade length adjustment knob (green)
* The CB15U-SP supersteel blade is shown in the figure above.
Structure of the PHP34-CB30-HS Cutter Pen
(for cutter blades of 3.0 mm diameter)
Cutter pen for 3.0-mm diameter blades fitted with a spring
* The CB30UC supersteel blade is shown in the figure above.
Protective cap PlungerSpring Cutter blade* Holder
Blade length adjustment knob (silver)
