FC2250-UM-251-9370 7-14
7. DISASSEMBLY AND ADJUSTMENT

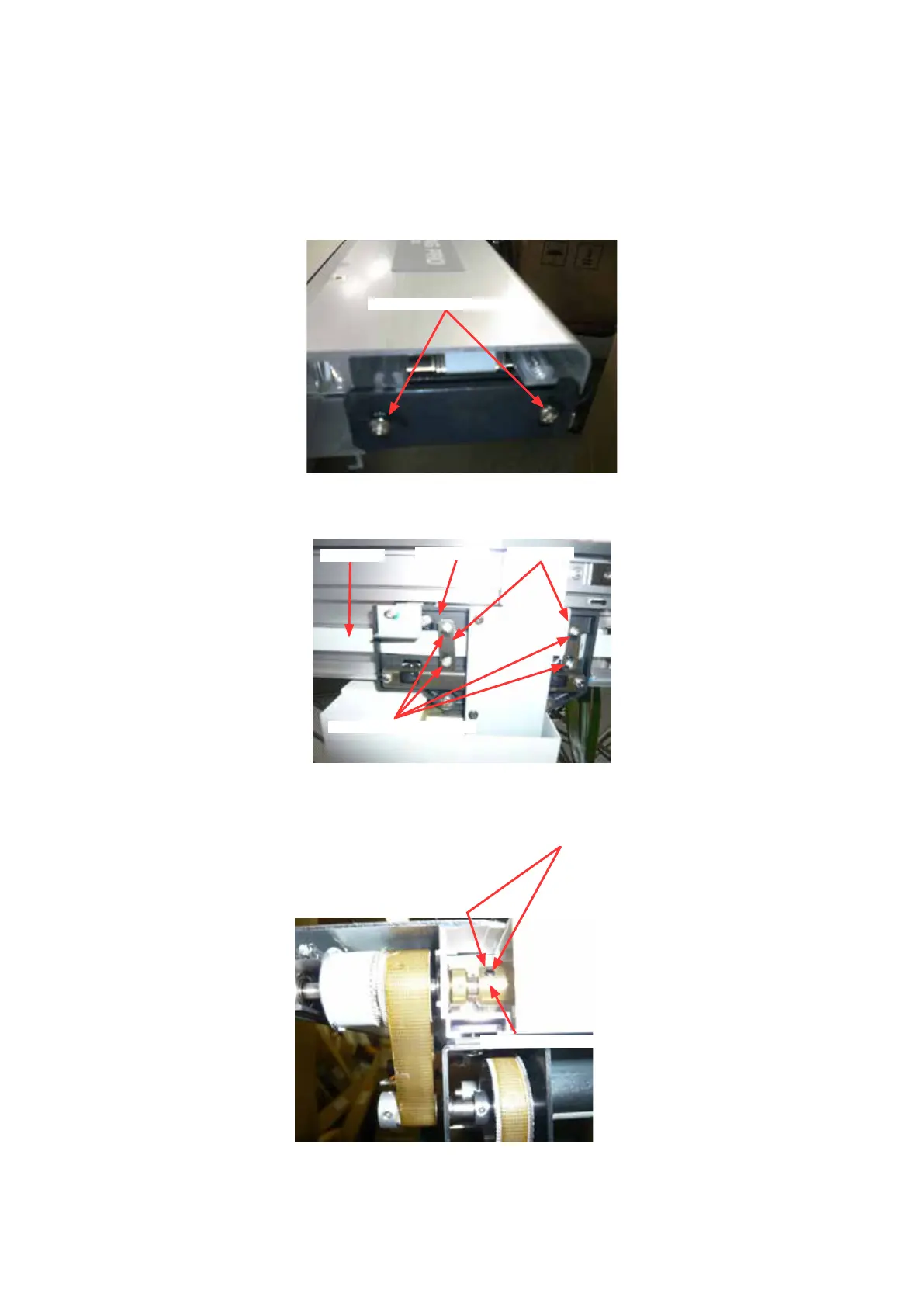

7.2.5 Rear X Belt
How to detach the rear X belt
(1) Detach the left rear cover (See the section 7.1.4).
(2) Detach the right rear cover (See the section 7.1.3).
(3) Loosen the two belt tension adjustment screws to loosen the front X belt tension.
Belt tension adjustment screw
(4) Remove the four M3L6 binding head screws holding the rear X belt stoppers, and then detach the rear X
belt from the rear X slider.
M3L6 binding head screw
Belt stopperRear X slider
Rear X belt
How to reinstall the rear X belt
(1) Loosen the two set screws holding the X rear drive shaft coupler.
Set screw
X rear drive shaft coupler
(2) Reattach the rear X belt in the reverse order in which it was detached.
(3) Move the Y bar to the far left side, then conrm the Y bar squarely becomes from X axis.
To Next Page
