FC2250-UM-251-9370 7-6
7. DISASSEMBLY AND ADJUSTMENT

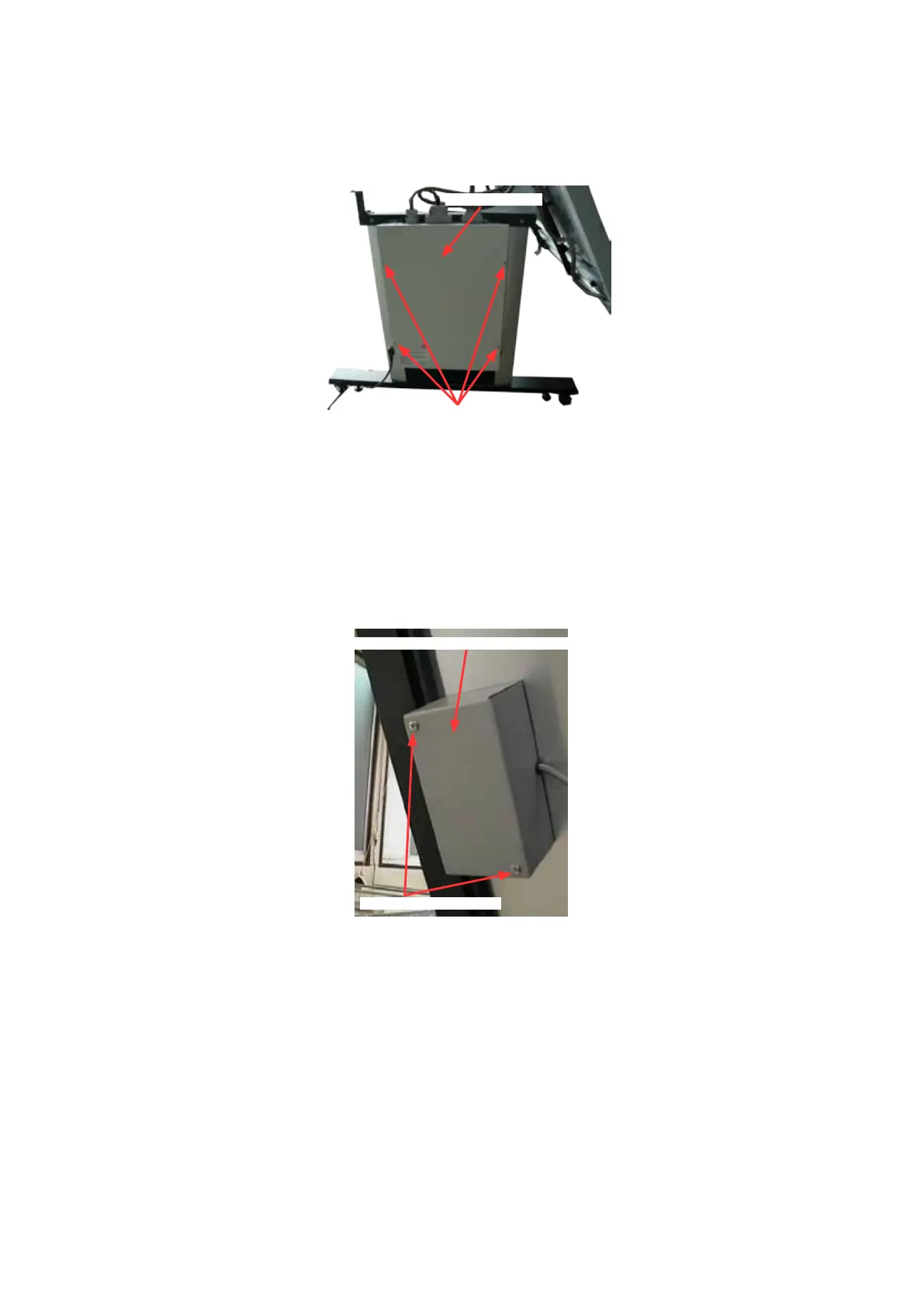

7.1.10 Control Box Cover
How to detach the control box cover
(1) Remove the four M3L6 binding head screws holding the control box cover, and then detach it.
Control box cover
M3L6 binding head screw
How to reinstall the control box cover
(1) Reattach the control box cover in the reverse order in which it was detached.
7.1.11 High Voltage Power Supply Board Cover (For ES model only)
How to detach the high voltage power supply board cover
(1) Remove the two M3L6 binding head screws holding the high voltage power supply board cover, and
then detach it.
High voltage power supply board cover
M3L6 binding head screw
How to reinstall the high voltage power supply board cover
(1) Reattach the high voltage power supply board cover in the reverse order in which it was detached.
