FC2250-UM-251-9370 8-7
8. ELECTRICAL ADJUSTMENTS
8.4 Explanation of the Values of the Main Board
Default factory settings

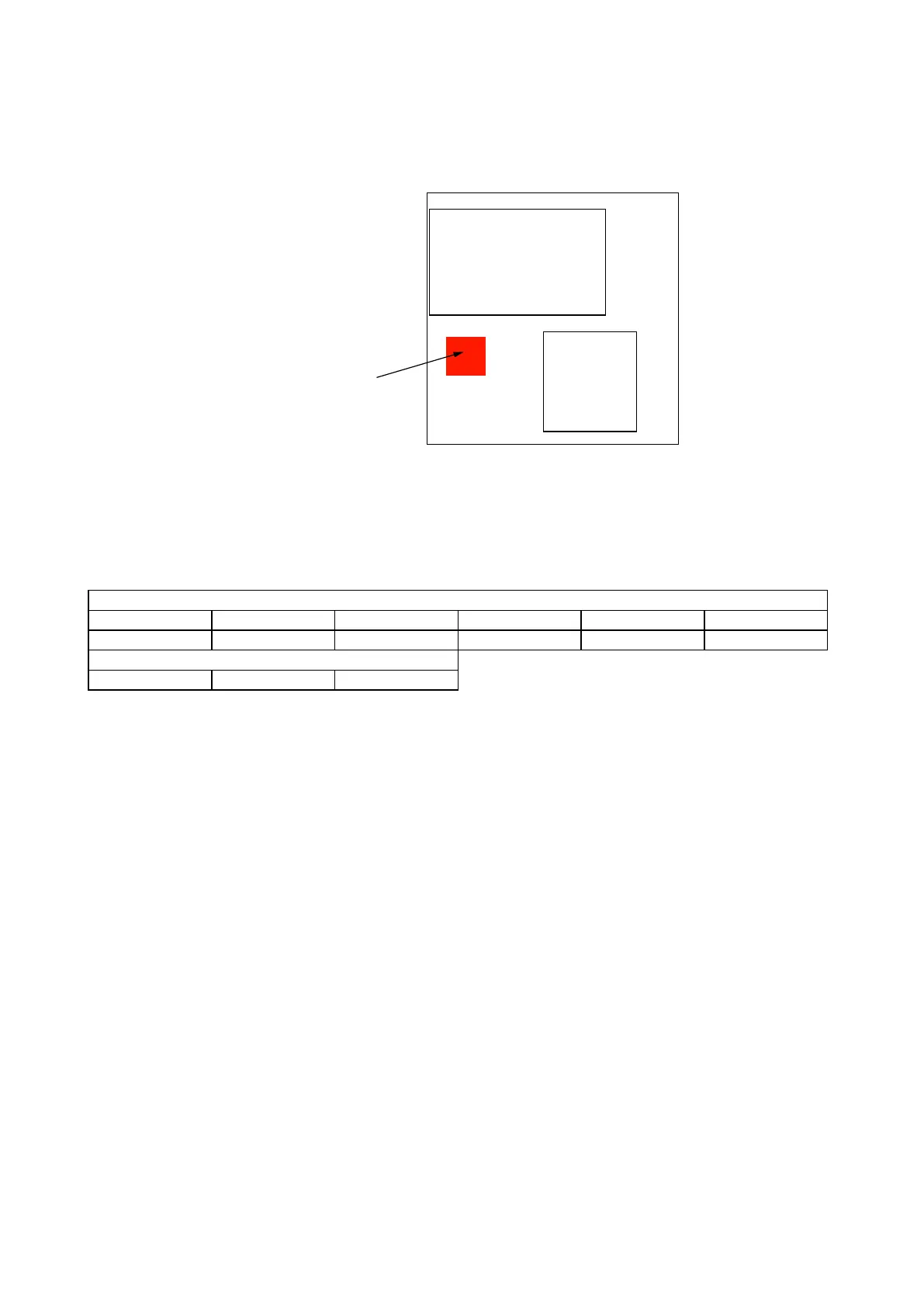

The default factory settings are recorded in the location shown below.
Main Board
Power
Supply
Board
The default factory
settings are recorded
here.
The contents of an example are shown below.
PEN1 88, 424, 732
PEN2 89, 424, 772, 1030, 1533
X=+10 Y=0 D=860.00
Explanation of the values
Pen force values
PEN1 24g 210g 400g - -
PEN2 48g 210g 400g 700g 1000g
Distance adjustment values
X Y D
You can input the same values when you have replaced the main board without making any adjustments
except the pen height, home position and pen interval adjustments.
If you have changed any values by making adjustments, record those values for the next maintenance check.
