FC2250-UM-251-9370 1-10
1. INTRODUCTION
1.9 Installation Location

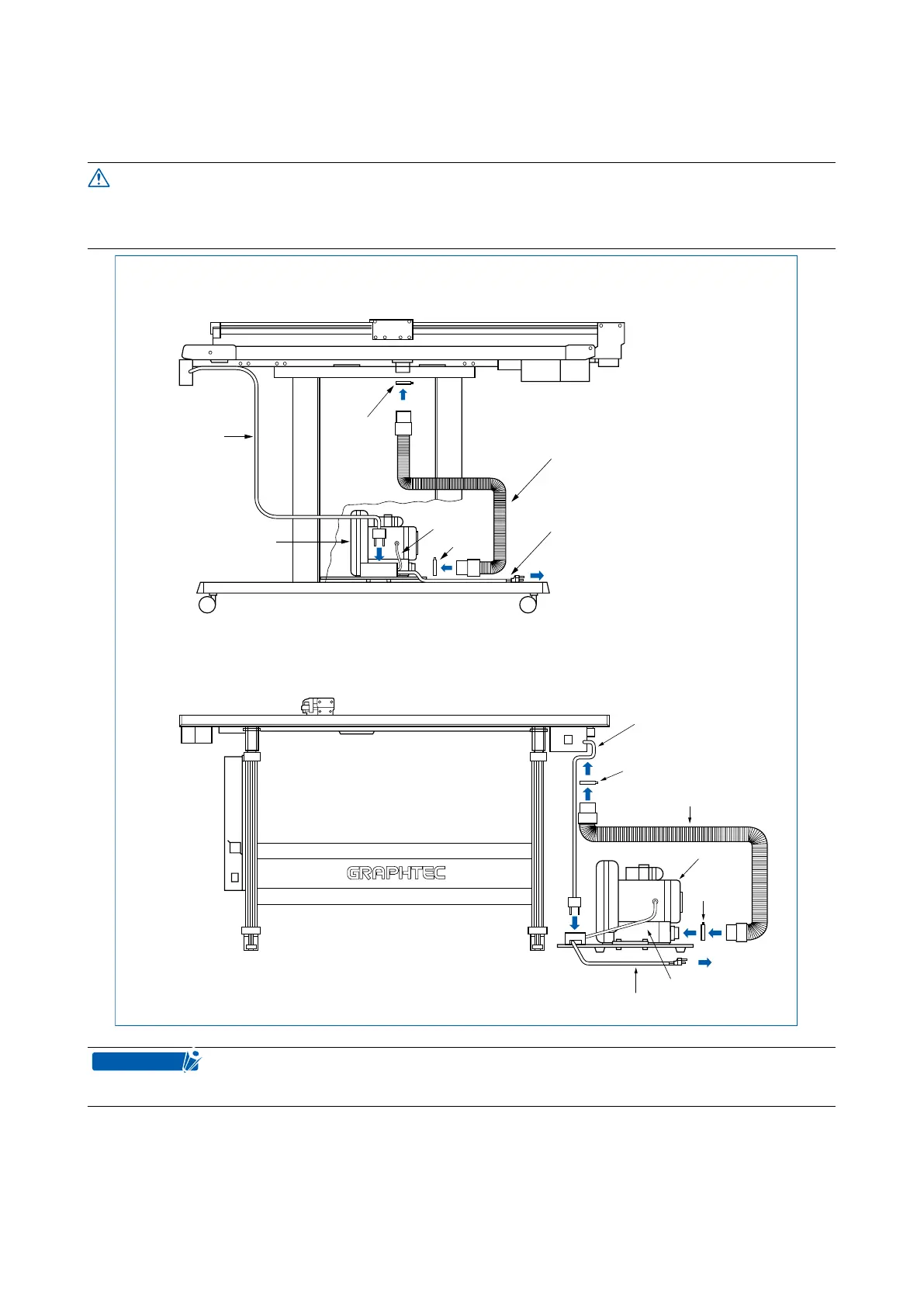

When connecting the vacuum pump to your cutting plotter, please refer to the following diagram.
The exhaust from the vacuum pump is hot, so do not place anything ammable near the exhaust port.
Failure to observe this precaution could cause a re.
Hose band
Hose band
CA2294-03
CA2294-02
CA2294-01
Vacuum pump
Durable flexible hose
Connect to the power outlet
Hose band
Hose band
Vacuum pump
CA2294-03
CA2294-02
CA2294-01
Connect to the
power outlet
Durable flexible hose
FC2250-60VC
FC2250-120VC
FC2250-180VC
A vacuum pump is not provided.
