7. DISASSEMBLY AND ADJUSTMENT
7.5.11 Y Slider

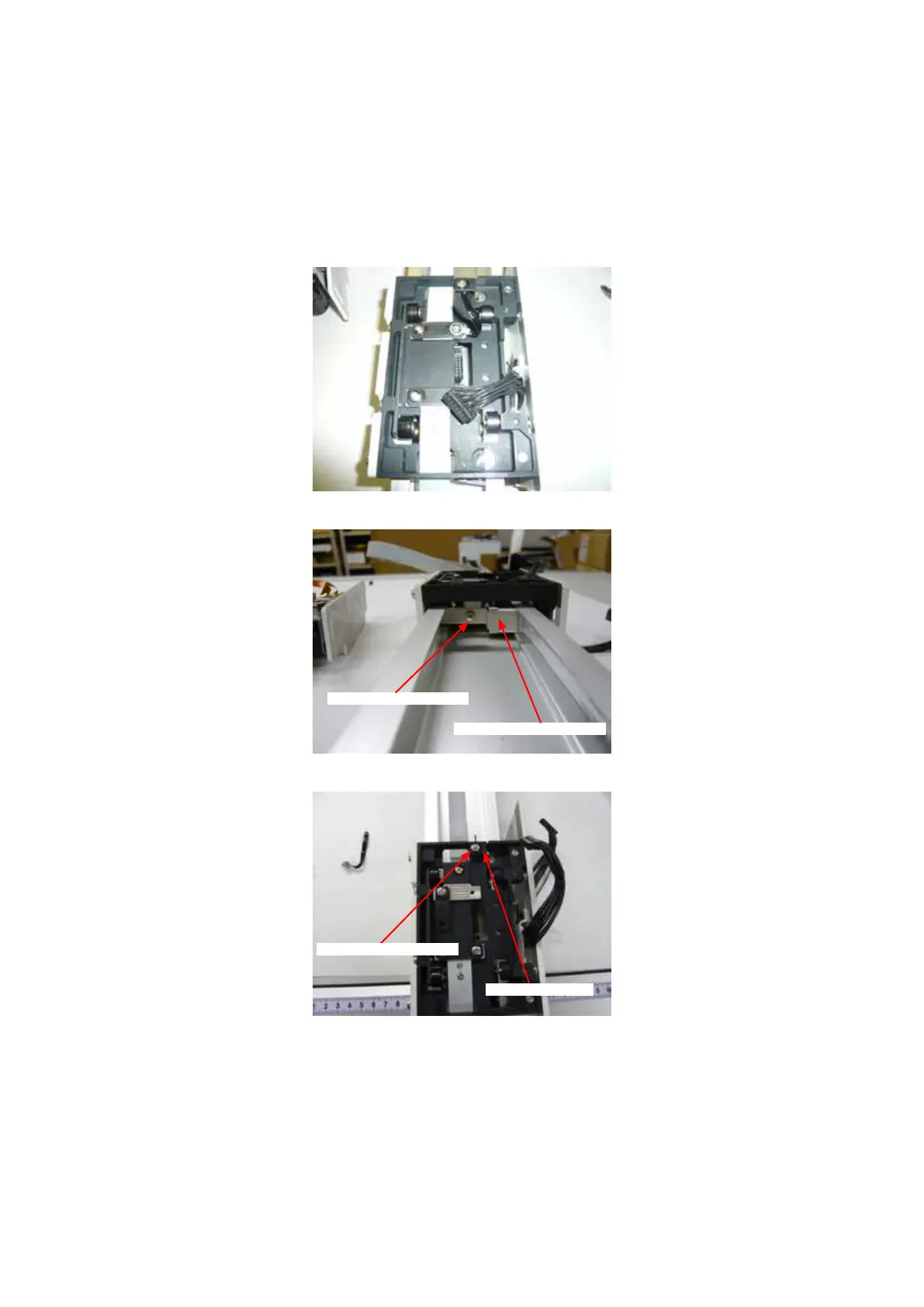

How to detach the Y slider
(1) Detach the pen block from the Y bar (See the section 7.3.1).
(2) Detach the Y bar (See the section 7.5.1).
(3) Detach the Y belt (See the section 7.5.5).
(4) Disconnect the cable from connector J62 on the pen exible cable relay board.
(5) Remove the M3L4 binding head screw holding the exible cable xing bracket, and then detach it.
M3L4 binding head screw
Flexible cable xing bracket
(6) Remove the M3L4 binding head screw holding the Y home sensor dog, and then detach it.
M3L4 binding head screw
Y home sensor dog
