9. TROUBLESHOOTING

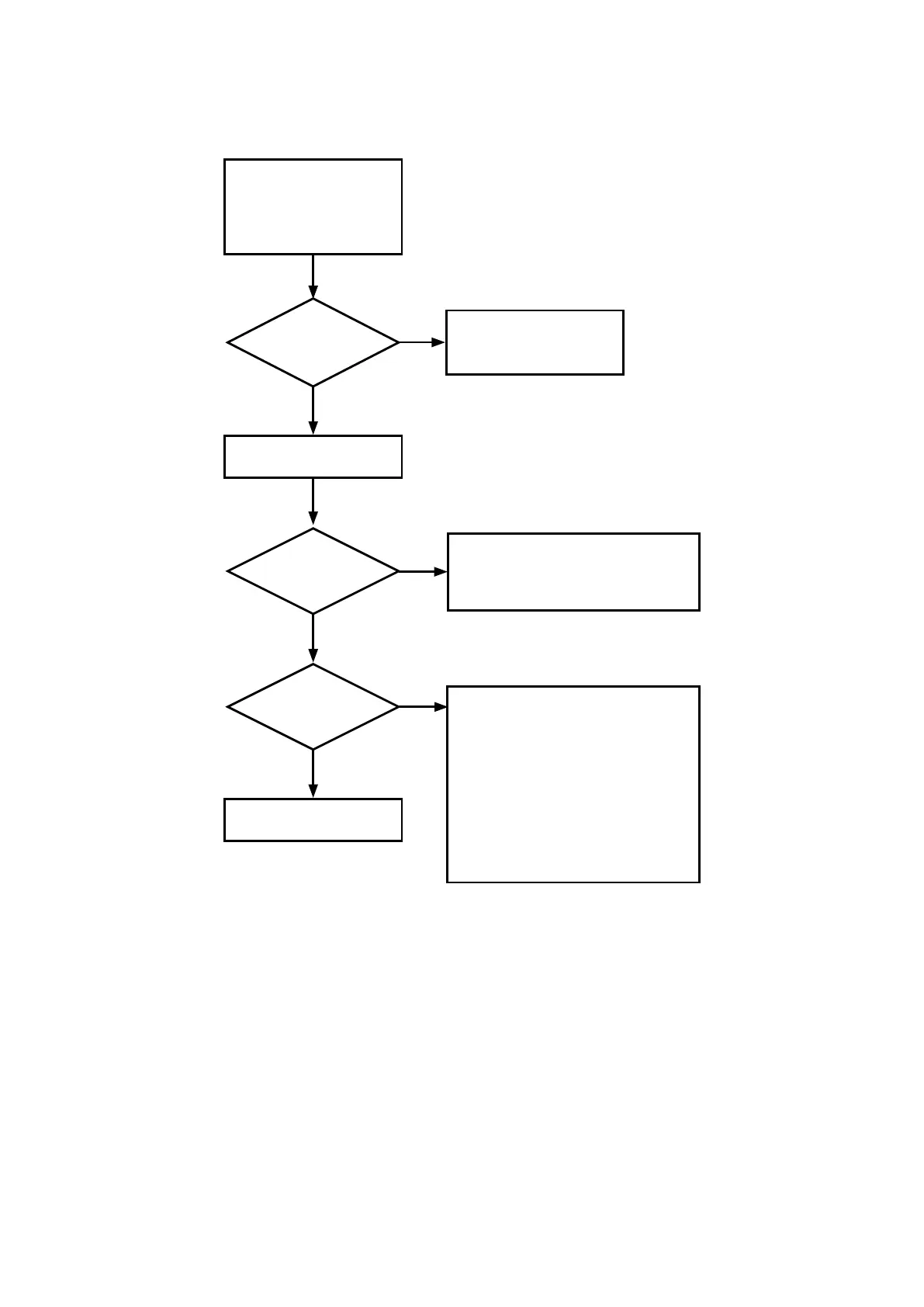

9.1.2 The Cutting Media Cannot be Satisfactorily Cut
Part 1
Does the
cutter blade rotate
smoothly?
The starting and end
points of the cutting don’t
match.
The cut corners are
rounded or too pointed.
No
Yes
Does the
problem occur in
plotter mode?
Attach a pen and draw in
plotter mode.
Is
there play
or a strange sound in
the mechanical
section?
See section 9.1.1
“Checking for Faulty
Rotation of the Blade”.
Yes
Check the cutter setting conditions.
• Cutter offset for the blade type.
• Blade length, speed, cutting force to
match the media.
Possible software problem
No
Check the tightening and adjustments
of the mechanical section.
• Driver section pulley and setscrew
looseness.
• Slider section roller pressure
inadequacy.
• Motor rotation defect (worn out
bearing in motor).
• Rollers at front of X rail and X slider
touching.
No
Yes
To Next Page
